Die Anleitung zu Android RadioGroup und RadioButton
View more Tutorials:

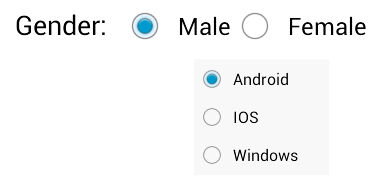

RadioButton ist ein view im Android. Er ist normaleweise mit RadioGroup benutzt. Davon ist RadioGroup ein Erhalter (container), die die RadioButton enthalten können. Wenn Sie auf einen Radiobutton in einer Gruppe zu wählen klicken, werden alle anderen Radionbutton in der Gruppe auswählen (deselect).

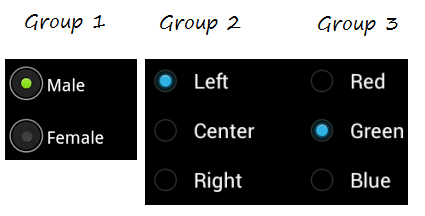

Unten ist das Bild von RadioButton , die in der unterschiedlichen Gruppe gesetzt werden
Unten ist das Bild von RadioButton , die in der unterschiedlichen Gruppe gesetzt werden

RadioGroup kann die RadioButton nach der horizontalen oder vertikalen Richtung arrangieren


Schauen Sie das Beispiel vor:

Erstellen Sie ein Projekt mit dem Name von AndroidRadioDemo.
- File > New > New Project > Empty Activity
- Name: AndroidRadioDemo
- Package name: org.o7planning.androidradiodemo
- Language: Java

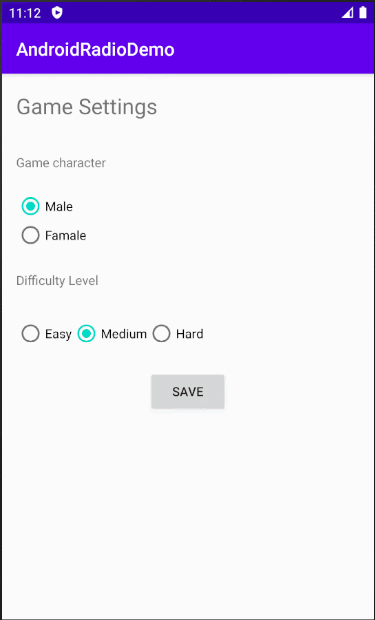

Die Interface der Applikation

Wenn Sie an den Schritten zum Entwerfen der Benutzeroberfläche dieser Anwendung interessiert sind, lesen Sie bitte den Anhang am Ende des Artikels..
activity_main.xml
<?xml version="1.0" encoding="utf-8"?> <androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android" xmlns:app="http://schemas.android.com/apk/res-auto" xmlns:tools="http://schemas.android.com/tools" android:layout_width="match_parent" android:layout_height="match_parent" tools:context=".MainActivity"> <TextView android:id="@+id/textView" android:layout_width="0dp" android:layout_height="50dp" android:layout_marginStart="16dp" android:layout_marginLeft="16dp" android:layout_marginTop="19dp" android:layout_marginEnd="16dp" android:layout_marginRight="16dp" android:text="Game Settings" android:textSize="24sp" app:layout_constraintEnd_toEndOf="parent" app:layout_constraintStart_toStartOf="parent" app:layout_constraintTop_toTopOf="parent" /> <TextView android:id="@+id/textView2" android:layout_width="0dp" android:layout_height="30dp" android:layout_marginStart="16dp" android:layout_marginLeft="16dp" android:layout_marginTop="19dp" android:layout_marginEnd="16dp" android:layout_marginRight="16dp" android:text="Game character" app:layout_constraintEnd_toEndOf="parent" app:layout_constraintStart_toStartOf="parent" app:layout_constraintTop_toBottomOf="@+id/textView" /> <RadioGroup android:id="@+id/radioGroup_character" android:layout_width="0dp" android:layout_height="wrap_content" android:layout_marginStart="16dp" android:layout_marginLeft="16dp" android:layout_marginTop="12dp" android:layout_marginEnd="16dp" android:layout_marginRight="16dp" app:layout_constraintEnd_toEndOf="parent" app:layout_constraintStart_toStartOf="parent" app:layout_constraintTop_toBottomOf="@+id/textView2"> <RadioButton android:id="@+id/radioButton_male" android:layout_width="match_parent" android:layout_height="wrap_content" android:text="Male" /> <RadioButton android:id="@+id/radioButton_female" android:layout_width="match_parent" android:layout_height="wrap_content" android:text="Famale" /> </RadioGroup> <TextView android:id="@+id/textView3" android:layout_width="0dp" android:layout_height="29dp" android:layout_marginStart="16dp" android:layout_marginLeft="16dp" android:layout_marginTop="24dp" android:layout_marginEnd="16dp" android:layout_marginRight="16dp" android:text="Difficulty Level" app:layout_constraintEnd_toEndOf="parent" app:layout_constraintStart_toStartOf="parent" app:layout_constraintTop_toBottomOf="@+id/radioGroup_character" /> <RadioGroup android:id="@+id/radioGroup_diffLevel" android:layout_width="0dp" android:layout_height="wrap_content" android:layout_marginStart="16dp" android:layout_marginLeft="16dp" android:layout_marginTop="24dp" android:layout_marginEnd="16dp" android:layout_marginRight="16dp" android:orientation="horizontal" app:layout_constraintEnd_toEndOf="parent" app:layout_constraintStart_toStartOf="parent" app:layout_constraintTop_toBottomOf="@+id/textView3"> <RadioButton android:id="@+id/radioButton_easy" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_weight="0" android:text="Easy" /> <RadioButton android:id="@+id/radioButton_medium" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_weight="0" android:text="Medium" /> <RadioButton android:id="@+id/radioButton_hard" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_weight="0" android:text="Hard" /> </RadioGroup> <Button android:id="@+id/button_save" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginTop="24dp" android:text="Save" app:layout_constraintEnd_toEndOf="parent" app:layout_constraintStart_toStartOf="parent" app:layout_constraintTop_toBottomOf="@+id/radioGroup_diffLevel" /> </androidx.constraintlayout.widget.ConstraintLayout>
MainActivity.java
package org.o7planning.androidradiodemo; import androidx.appcompat.app.AppCompatActivity; import android.os.Bundle; import android.util.Log; import android.view.View; import android.widget.Button; import android.widget.CompoundButton; import android.widget.RadioButton; import android.widget.RadioGroup; import android.widget.Toast; public class MainActivity extends AppCompatActivity { private RadioGroup radioGroupCharacter; private RadioButton radioButtonMale; private RadioButton radioButtonFemale; private RadioGroup radioGroupDiffLevel; private RadioButton radioButtonEasy; private RadioButton radioButtonMedium; private RadioButton radioButtonHard; private Button buttonSave; private String LOGTAG = "AndroidRadioDemo"; @Override protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.activity_main); // this.radioGroupCharacter= (RadioGroup) this.findViewById(R.id.radioGroup_character); this.radioButtonMale = (RadioButton) this.findViewById(R.id.radioButton_male); this.radioButtonFemale = (RadioButton)this.findViewById(R.id.radioButton_female); this.radioButtonMale.setChecked(true); // this.radioGroupDiffLevel= (RadioGroup) this.findViewById(R.id.radioGroup_diffLevel); this.radioButtonEasy = (RadioButton) this.findViewById(R.id.radioButton_easy); this.radioButtonMedium = (RadioButton)this.findViewById(R.id.radioButton_medium); this.radioButtonHard = (RadioButton)this.findViewById(R.id.radioButton_hard); this.radioButtonMedium.setChecked(true); this.buttonSave= (Button) this.findViewById(R.id.button_save); // When radio group "Difficulty Level" checked change. this.radioGroupDiffLevel.setOnCheckedChangeListener(new RadioGroup.OnCheckedChangeListener() { @Override public void onCheckedChanged(RadioGroup group, int checkedId) { doOnDifficultyLevelChanged(group, checkedId); } }); // When radio button "Female" checked change. this.radioButtonMale.setOnCheckedChangeListener(new RadioButton.OnCheckedChangeListener() { @Override public void onCheckedChanged(CompoundButton buttonView, boolean isChecked) { doOnGameCharacterChanged(buttonView,isChecked); } }); // When radio button "Male" checked change. this.radioButtonFemale.setOnCheckedChangeListener(new RadioButton.OnCheckedChangeListener() { @Override public void onCheckedChanged(CompoundButton buttonView, boolean isChecked) { doOnGameCharacterChanged(buttonView,isChecked); } }); // When button "Save" clicked. this.buttonSave.setOnClickListener(new Button.OnClickListener() { @Override public void onClick(View v) { doSave(); } }); } // When radio group "Difficulty Level" checked change. private void doOnDifficultyLevelChanged(RadioGroup group, int checkedId) { int checkedRadioId = group.getCheckedRadioButtonId(); if(checkedRadioId== R.id.radioButton_easy) { Toast.makeText(this,"You choose the level of difficulty: Easy",Toast.LENGTH_SHORT).show(); } else if(checkedRadioId== R.id.radioButton_medium ) { Toast.makeText(this,"You choose the level of difficulty: Medium",Toast.LENGTH_SHORT).show(); } else if(checkedRadioId== R.id.radioButton_hard) { Toast.makeText(this,"You choose the level of difficulty: Hard",Toast.LENGTH_SHORT).show(); } } // When radio button checked change. private void doOnGameCharacterChanged(CompoundButton buttonView, boolean isChecked) { RadioButton radio =(RadioButton) buttonView; Log.i(LOGTAG, "RadioButton "+ radio.getText()+" : "+ isChecked); } // When button "Save" clicked. private void doSave() { int difficultyLevel = this.radioGroupDiffLevel.getCheckedRadioButtonId(); int gameCharacter = this.radioGroupCharacter.getCheckedRadioButtonId(); RadioButton radioButtonDiffLevel = (RadioButton) this.findViewById(difficultyLevel); RadioButton radioButtonGameCharacter = (RadioButton) this.findViewById(gameCharacter); String message ="Difficulty Level: "+ radioButtonDiffLevel.getText() +", Game Character: " + radioButtonGameCharacter.getText() ; Toast.makeText(this,message,Toast.LENGTH_LONG).show(); } }

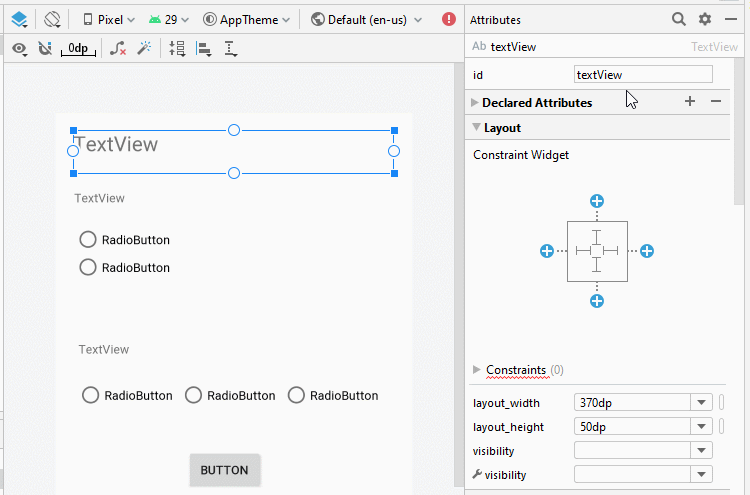

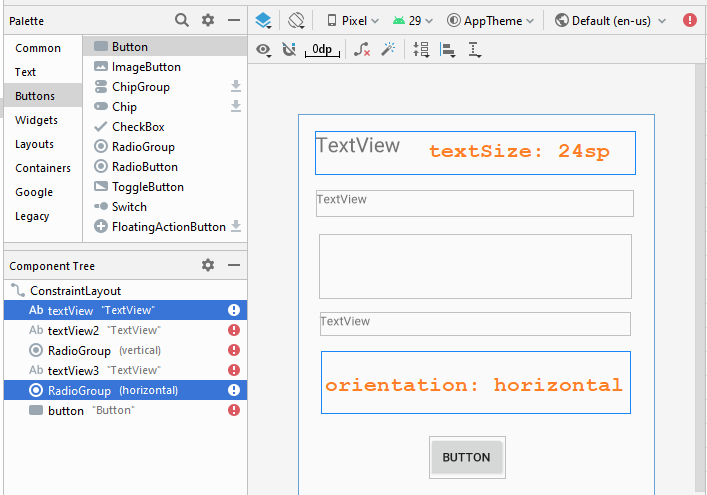

Legen Sie die Schriftgröße für die erste TextView fest, und legen Sie die horizontale Ausrichtung für die zweite RadioGroup fest.

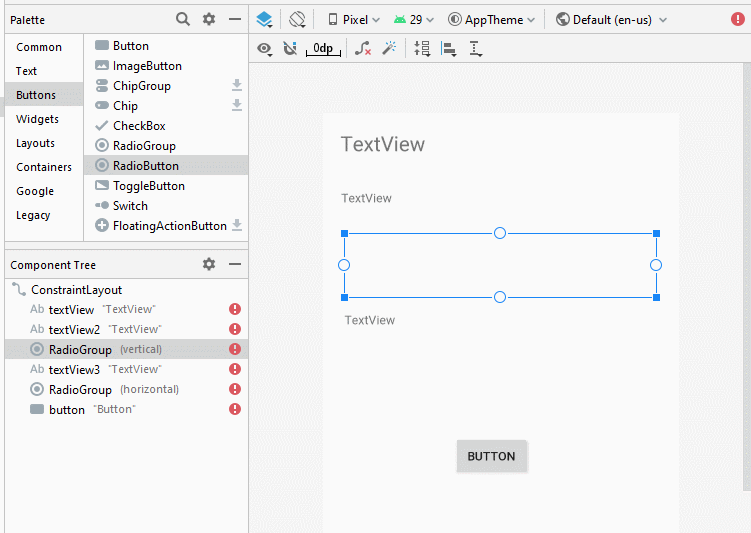

Fügen Sie die RadioButton in die Interface ein:

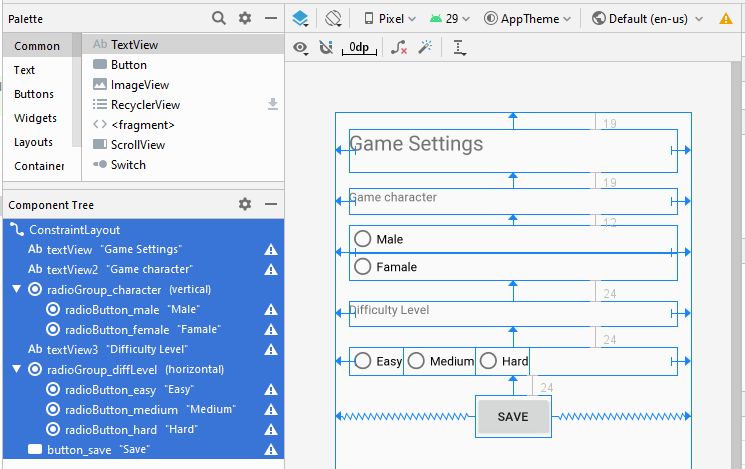

Legen Sie ID, Text für die Komponenten in die Interface fest.
