1. Die Vorstellung

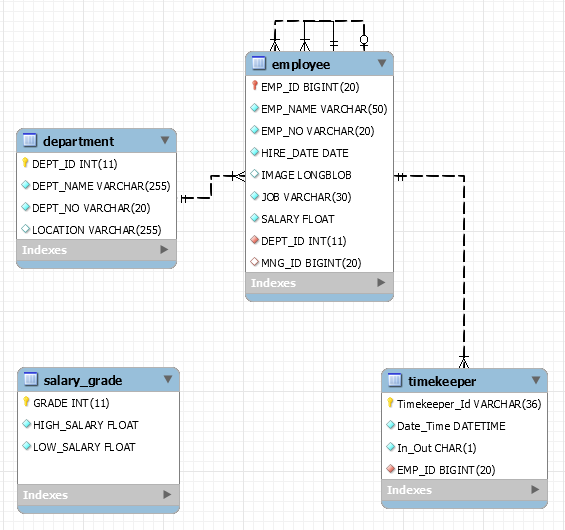

Simplehr ist eine einfache Datenbank, einschließend einige Tabelle. Diese Datenbank wird in einigen Anleitungen in die Webseite o7planning benutzt.
Es hängt von der Datenbank, an die Sie gewöhnen. Sie können die script kopieren um Simplehr für die Datenbank zu erstellen. Wir unterstützen einige Typen von Datenbank
  • Oracle
  • MySQL
  • SQL Server

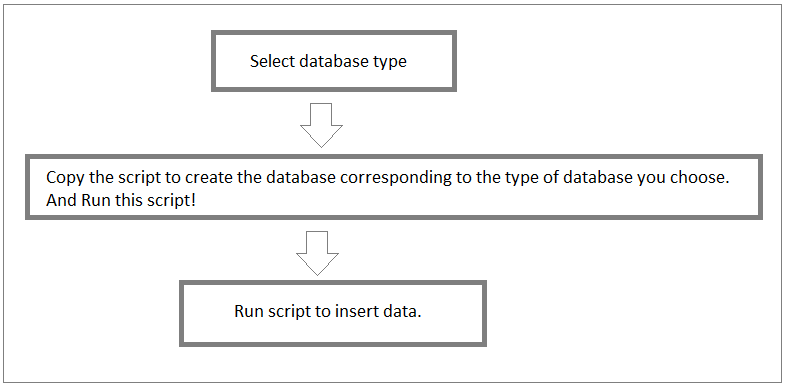

Die Schritte zur Erstellung der Datenbank

2. MySQL - Creation Script

  • MYSQL SCRIPT:
create table DEPARTMENT (
   DEPT_ID integer not null,
   DEPT_NAME varchar(255) not null,
   DEPT_NO varchar(20) not null,
   LOCATION varchar(255),
   primary key (DEPT_ID),
   unique (DEPT_NO)
);

create table EMPLOYEE (
   EMP_ID bigint not null,
   EMP_NAME varchar(50) not null,
   EMP_NO varchar(20) not null,
   HIRE_DATE date not null,
   IMAGE longblob,
   JOB varchar(30) not null,
   SALARY float not null,
   DEPT_ID integer not null,
   MNG_ID bigint,
   primary key (EMP_ID),
   unique (EMP_NO)
);

create table SALARY_GRADE (
   GRADE integer not null,
   HIGH_SALARY float not null,
   LOW_SALARY float not null,
   primary key (GRADE)
);

create table TIMEKEEPER (
   Timekeeper_Id varchar(36) not null,
   Date_Time datetime not null,
   In_Out char(1) not null,
   EMP_ID bigint not null,
   primary key (Timekeeper_Id)
);

alter table EMPLOYEE
   add index FK75C8D6AE269A3C9 (DEPT_ID),
   add constraint FK75C8D6AE269A3C9
   foreign key (DEPT_ID)
   references DEPARTMENT (DEPT_ID);

alter table EMPLOYEE
   add index FK75C8D6AE6106A42 (EMP_ID),
   add constraint FK75C8D6AE6106A42
   foreign key (EMP_ID)
   references EMPLOYEE (EMP_ID);

alter table EMPLOYEE
   add index FK75C8D6AE13C12F64 (MNG_ID),
   add constraint FK75C8D6AE13C12F64
   foreign key (MNG_ID)
   references EMPLOYEE (EMP_ID);

alter table TIMEKEEPER
   add index FK744D9BFF6106A42 (EMP_ID),
   add constraint FK744D9BFF6106A42
   foreign key (EMP_ID)
   references EMPLOYEE (EMP_ID);
  • INSERT DATA (MYSQL)
insert into Department (DEPT_ID, DEPT_NAME, DEPT_NO, LOCATION)
values (10, 'ACCOUNTING', 'D10', 'NEW YORK');

insert into Department (DEPT_ID, DEPT_NAME, DEPT_NO, LOCATION)
values (20, 'RESEARCH', 'D20', 'DALLAS');

insert into Department (DEPT_ID, DEPT_NAME, DEPT_NO, LOCATION)
values (30, 'SALES', 'D30', 'CHICAGO');

insert into Department (DEPT_ID, DEPT_NAME, DEPT_NO, LOCATION)
values (40, 'OPERATIONS', 'D40', 'BOSTON');

-------------------------------------------------------------------------------------------------


insert into Employee (EMP_ID, EMP_NAME, EMP_NO, HIRE_DATE, JOB, SALARY, DEPT_ID, MNG_ID)
values (7839, 'KING', 'E7839', Str_To_Date('17-11-1981', '%d-%m-%Y'), 'PRESIDENT', 5000, 10, null);

insert into Employee (EMP_ID, EMP_NAME, EMP_NO, HIRE_DATE, JOB, SALARY, DEPT_ID, MNG_ID)
values (7566, 'JONES', 'E7566', Str_To_Date('02-04-1981', '%d-%m-%Y'), 'MANAGER', 2975, 20, 7839);

insert into Employee (EMP_ID, EMP_NAME, EMP_NO, HIRE_DATE, JOB, SALARY, DEPT_ID, MNG_ID)
values (7902, 'FORD', 'E7902', Str_To_Date('03-12-1981', '%d-%m-%Y'), 'ANALYST', 3000, 20, 7566);

insert into Employee (EMP_ID, EMP_NAME, EMP_NO, HIRE_DATE, JOB, SALARY, DEPT_ID, MNG_ID)
values (7369, 'SMITH', 'E7369', Str_To_Date('17-12-1980', '%d-%m-%Y'), 'CLERK', 800, 20, 7902);

insert into Employee (EMP_ID, EMP_NAME, EMP_NO, HIRE_DATE, JOB, SALARY, DEPT_ID, MNG_ID)
values (7698, 'BLAKE', 'E7698', Str_To_Date('01-05-1981', '%d-%m-%Y'), 'MANAGER', 2850, 30, 7839);

insert into Employee (EMP_ID, EMP_NAME, EMP_NO, HIRE_DATE, JOB, SALARY, DEPT_ID, MNG_ID)
values (7499, 'ALLEN', 'E7499', Str_To_Date('20-02-1981', '%d-%m-%Y'), 'SALESMAN', 1600, 30, 7698);

insert into Employee (EMP_ID, EMP_NAME, EMP_NO, HIRE_DATE, JOB, SALARY, DEPT_ID, MNG_ID)
values (7521, 'WARD', 'E7521', Str_To_Date('22-02-1981', '%d-%m-%Y'), 'SALESMAN', 1250, 30, 7698);

insert into Employee (EMP_ID, EMP_NAME, EMP_NO, HIRE_DATE, JOB, SALARY, DEPT_ID, MNG_ID)
values (7654, 'MARTIN', 'E7654', Str_To_Date('28-09-1981', '%d-%m-%Y'), 'SALESMAN', 1250, 30, 7698);

insert into Employee (EMP_ID, EMP_NAME, EMP_NO, HIRE_DATE, JOB, SALARY, DEPT_ID, MNG_ID)
values (7782, 'CLARK', 'E7782', Str_To_Date('09-06-1981', '%d-%m-%Y'), 'MANAGER', 2450, 30, 7839);

insert into Employee (EMP_ID, EMP_NAME, EMP_NO, HIRE_DATE, JOB, SALARY, DEPT_ID, MNG_ID)
values (7788, 'SCOTT', 'E7788', Str_To_Date('19-04-1987', '%d-%m-%Y'), 'ANALYST', 3000, 20, 7566);

insert into Employee (EMP_ID, EMP_NAME, EMP_NO, HIRE_DATE, JOB, SALARY, DEPT_ID, MNG_ID)
values (7844, 'TURNER', 'E7844', Str_To_Date('08-09-1981', '%d-%m-%Y'), 'SALESMAN', 1500, 30, 7698);

insert into Employee (EMP_ID, EMP_NAME, EMP_NO, HIRE_DATE, JOB, SALARY, DEPT_ID, MNG_ID)
values (7876, 'ADAMS', 'E7876', Str_To_Date('23-05-1987', '%d-%m-%Y'), 'CLERK', 1100, 20, 7698);

insert into Employee (EMP_ID, EMP_NAME, EMP_NO, HIRE_DATE, JOB, SALARY, DEPT_ID, MNG_ID)
values (7900, 'ADAMS', 'E7900', Str_To_Date('03-12-1981', '%d-%m-%Y'), 'CLERK', 950, 30, 7698);

insert into Employee (EMP_ID, EMP_NAME, EMP_NO, HIRE_DATE, JOB, SALARY, DEPT_ID, MNG_ID)
values (7934, 'MILLER', 'E7934', Str_To_Date('23-01-1982', '%d-%m-%Y'), 'CLERK', 1300, 10, 7698);

-------------------------------------------------------------------------------------------------

insert into Salary_Grade (GRADE, HIGH_SALARY, LOW_SALARY)
values (1, 9999, 3001);

3. SQL Server - Creation Script

  • SQL SERVER SCRIPT:
create table DEPARTMENT (
    DEPT_ID int not null,
    DEPT_NAME varchar(255) not null,
    DEPT_NO varchar(20) not null,
    LOCATION varchar(255),
    primary key (DEPT_ID),
    unique (DEPT_NO)
);

create table EMPLOYEE (
    EMP_ID numeric(19,0) not null,
    EMP_NAME varchar(50) not null,
    EMP_NO varchar(20) not null,
    HIRE_DATE datetime not null,
    IMAGE image,
    JOB varchar(30) not null,
    SALARY float not null,
    DEPT_ID int not null,
    MNG_ID numeric(19,0),
    primary key (EMP_ID),
    unique (EMP_NO)
);

create table SALARY_GRADE (
    GRADE int not null,
    HIGH_SALARY float not null,
    LOW_SALARY float not null,
    primary key (GRADE)
);

create table TIMEKEEPER (
    Timekeeper_Id varchar(36) not null,
    Date_Time datetime not null,
    In_Out char(1) not null,
    EMP_ID numeric(19,0) not null,
    primary key (Timekeeper_Id)
);

alter table EMPLOYEE
    add constraint FK75C8D6AE269A3C9
    foreign key (DEPT_ID)
    references DEPARTMENT;

alter table EMPLOYEE
    add constraint FK75C8D6AE6106A42
    foreign key (EMP_ID)
    references EMPLOYEE;

alter table EMPLOYEE
    add constraint FK75C8D6AE13C12F64
    foreign key (MNG_ID)
    references EMPLOYEE;

alter table TIMEKEEPER
    add constraint FK744D9BFF6106A42
    foreign key (EMP_ID)
    references EMPLOYEE;
  • INSERT DATA (SQL SERVER)
insert into Department (DEPT_ID, DEPT_NAME, DEPT_NO, LOCATION)
values (10, 'ACCOUNTING', 'D10', 'NEW YORK');

insert into Department (DEPT_ID, DEPT_NAME, DEPT_NO, LOCATION)
values (20, 'RESEARCH', 'D20', 'DALLAS');

insert into Department (DEPT_ID, DEPT_NAME, DEPT_NO, LOCATION)
values (30, 'SALES', 'D30', 'CHICAGO');

insert into Department (DEPT_ID, DEPT_NAME, DEPT_NO, LOCATION)
values (40, 'OPERATIONS', 'D40', 'BOSTON');

-------------------------------------------------------------------------------------------------


insert into Employee (EMP_ID, EMP_NAME, EMP_NO, HIRE_DATE, JOB, SALARY, DEPT_ID, MNG_ID)
values (7839, 'KING', 'E7839', Convert(Datetime,'17-11-1981', 105), 'PRESIDENT', 5000, 10, null);

insert into Employee (EMP_ID, EMP_NAME, EMP_NO, HIRE_DATE, JOB, SALARY, DEPT_ID, MNG_ID)
values (7566, 'JONES', 'E7566', Convert(Datetime,'02-04-1981', 105), 'MANAGER', 2975, 20, 7839);

insert into Employee (EMP_ID, EMP_NAME, EMP_NO, HIRE_DATE, JOB, SALARY, DEPT_ID, MNG_ID)
values (7902, 'FORD', 'E7902', Convert(Datetime,'03-12-1981', 105), 'ANALYST', 3000, 20, 7566);

insert into Employee (EMP_ID, EMP_NAME, EMP_NO, HIRE_DATE, JOB, SALARY, DEPT_ID, MNG_ID)
values (7369, 'SMITH', 'E7369', Convert(Datetime,'17-12-1980', 105), 'CLERK', 800, 20, 7902);

insert into Employee (EMP_ID, EMP_NAME, EMP_NO, HIRE_DATE, JOB, SALARY, DEPT_ID, MNG_ID)
values (7698, 'BLAKE', 'E7698', Convert(Datetime,'01-05-1981', 105), 'MANAGER', 2850, 30, 7839);

insert into Employee (EMP_ID, EMP_NAME, EMP_NO, HIRE_DATE, JOB, SALARY, DEPT_ID, MNG_ID)
values (7499, 'ALLEN', 'E7499', Convert(Datetime,'20-02-1981', 105), 'SALESMAN', 1600, 30, 7698);

insert into Employee (EMP_ID, EMP_NAME, EMP_NO, HIRE_DATE, JOB, SALARY, DEPT_ID, MNG_ID)
values (7521, 'WARD', 'E7521', Convert(Datetime,'22-02-1981', 105), 'SALESMAN', 1250, 30, 7698);

insert into Employee (EMP_ID, EMP_NAME, EMP_NO, HIRE_DATE, JOB, SALARY, DEPT_ID, MNG_ID)
values (7654, 'MARTIN', 'E7654', Convert(Datetime,'28-09-1981', 105), 'SALESMAN', 1250, 30, 7698);

insert into Employee (EMP_ID, EMP_NAME, EMP_NO, HIRE_DATE, JOB, SALARY, DEPT_ID, MNG_ID)
values (7782, 'CLARK', 'E7782', Convert(Datetime,'09-06-1981', 105), 'MANAGER', 2450, 30, 7839);

insert into Employee (EMP_ID, EMP_NAME, EMP_NO, HIRE_DATE, JOB, SALARY, DEPT_ID, MNG_ID)
values (7788, 'SCOTT', 'E7788', Convert(Datetime,'19-04-1987', 105), 'ANALYST', 3000, 20, 7566);

insert into Employee (EMP_ID, EMP_NAME, EMP_NO, HIRE_DATE, JOB, SALARY, DEPT_ID, MNG_ID)
values (7844, 'TURNER', 'E7844', Convert(Datetime,'08-09-1981', 105), 'SALESMAN', 1500, 30, 7698);

insert into Employee (EMP_ID, EMP_NAME, EMP_NO, HIRE_DATE, JOB, SALARY, DEPT_ID, MNG_ID)
values (7876, 'ADAMS', 'E7876', Convert(Datetime,'23-05-1987', 105), 'CLERK', 1100, 20, 7698);

insert into Employee (EMP_ID, EMP_NAME, EMP_NO, HIRE_DATE, JOB, SALARY, DEPT_ID, MNG_ID)
values (7900, 'ADAMS', 'E7900', Convert(Datetime,'03-12-1981', 105), 'CLERK', 950, 30, 7698);

insert into Employee (EMP_ID, EMP_NAME, EMP_NO, HIRE_DATE, JOB, SALARY, DEPT_ID, MNG_ID)
values (7934, 'MILLER', 'E7934', Convert(Datetime,'23-01-1982', 105), 'CLERK', 1300, 10, 7698);

-------------------------------------------------------------------------------------------------

insert into Salary_Grade (GRADE, HIGH_SALARY, LOW_SALARY)
values (1, 9999, 3001);

4. PostGres - Creation Script

Create Tables (PostGres):
create table DEPARTMENT (
    DEPT_ID bigint not null,
    DEPT_NAME varchar(255) not null,
    DEPT_NO varchar(20) not null,
    LOCATION varchar(255),
    primary key (DEPT_ID),
    unique (DEPT_NO)
);

create table EMPLOYEE (
    EMP_ID bigint not null,
    EMP_NAME varchar(50) not null,
    EMP_NO varchar(20) not null,
    HIRE_DATE date not null,
    IMAGE bytea,
    JOB varchar(30) not null,
    SALARY float not null,
    DEPT_ID bigint not null,
    MNG_ID bigint,
    primary key (EMP_ID),
    unique (EMP_NO)
);

create table SALARY_GRADE (
    GRADE int not null,
    HIGH_SALARY float not null,
    LOW_SALARY float not null,
    primary key (GRADE)
);

create table TIMEKEEPER (
    Timekeeper_Id varchar(36) not null,
    Date_Time timestamp not null,
    In_Out char(1) not null,
    EMP_ID bigint not null,
    primary key (Timekeeper_Id)
);

alter table EMPLOYEE
    add constraint FK75C8D6AE269A3C9
    foreign key (DEPT_ID)
    references DEPARTMENT;

alter table EMPLOYEE
    add constraint FK75C8D6AE6106A42
    foreign key (EMP_ID)
    references EMPLOYEE;

alter table EMPLOYEE
    add constraint FK75C8D6AE13C12F64
    foreign key (MNG_ID)
    references EMPLOYEE;

alter table TIMEKEEPER
    add constraint FK744D9BFF6106A42
    foreign key (EMP_ID)
    references EMPLOYEE;
  • INSERT DATA (PostGres)
insert into Department (DEPT_ID, DEPT_NAME, DEPT_NO, LOCATION)
values (10, 'ACCOUNTING', 'D10', 'NEW YORK');

insert into Department (DEPT_ID, DEPT_NAME, DEPT_NO, LOCATION)
values (20, 'RESEARCH', 'D20', 'DALLAS');

insert into Department (DEPT_ID, DEPT_NAME, DEPT_NO, LOCATION)
values (30, 'SALES', 'D30', 'CHICAGO');

insert into Department (DEPT_ID, DEPT_NAME, DEPT_NO, LOCATION)
values (40, 'OPERATIONS', 'D40', 'BOSTON');

-------------------------------------------------------------------------------------------------


insert into Employee (EMP_ID, EMP_NAME, EMP_NO, HIRE_DATE, JOB, SALARY, DEPT_ID, MNG_ID)
values (7839, 'KING', 'E7839', to_date('17-11-1981', 'dd-mm-yyyy'), 'PRESIDENT', 5000, 10, null);

insert into Employee (EMP_ID, EMP_NAME, EMP_NO, HIRE_DATE, JOB, SALARY, DEPT_ID, MNG_ID)
values (7566, 'JONES', 'E7566', to_date('02-04-1981', 'dd-mm-yyyy'), 'MANAGER', 2975, 20, 7839);

insert into Employee (EMP_ID, EMP_NAME, EMP_NO, HIRE_DATE, JOB, SALARY, DEPT_ID, MNG_ID)
values (7902, 'FORD', 'E7902', to_date('03-12-1981', 'dd-mm-yyyy'), 'ANALYST', 3000, 20, 7566);

insert into Employee (EMP_ID, EMP_NAME, EMP_NO, HIRE_DATE, JOB, SALARY, DEPT_ID, MNG_ID)
values (7369, 'SMITH', 'E7369', to_date('17-12-1980', 'dd-mm-yyyy'), 'CLERK', 800, 20, 7902);

insert into Employee (EMP_ID, EMP_NAME, EMP_NO, HIRE_DATE, JOB, SALARY, DEPT_ID, MNG_ID)
values (7698, 'BLAKE', 'E7698', to_date('01-05-1981', 'dd-mm-yyyy'), 'MANAGER', 2850, 30, 7839);

insert into Employee (EMP_ID, EMP_NAME, EMP_NO, HIRE_DATE, JOB, SALARY, DEPT_ID, MNG_ID)
values (7499, 'ALLEN', 'E7499', to_date('20-02-1981', 'dd-mm-yyyy'), 'SALESMAN', 1600, 30, 7698);

insert into Employee (EMP_ID, EMP_NAME, EMP_NO, HIRE_DATE, JOB, SALARY, DEPT_ID, MNG_ID)
values (7521, 'WARD', 'E7521', to_date('22-02-1981', 'dd-mm-yyyy'), 'SALESMAN', 1250, 30, 7698);

insert into Employee (EMP_ID, EMP_NAME, EMP_NO, HIRE_DATE, JOB, SALARY, DEPT_ID, MNG_ID)
values (7654, 'MARTIN', 'E7654', to_date('28-09-1981', 'dd-mm-yyyy'), 'SALESMAN', 1250, 30, 7698);

insert into Employee (EMP_ID, EMP_NAME, EMP_NO, HIRE_DATE, JOB, SALARY, DEPT_ID, MNG_ID)
values (7782, 'CLARK', 'E7782', to_date('09-06-1981', 'dd-mm-yyyy'), 'MANAGER', 2450, 30, 7839);

insert into Employee (EMP_ID, EMP_NAME, EMP_NO, HIRE_DATE, JOB, SALARY, DEPT_ID, MNG_ID)
values (7788, 'SCOTT', 'E7788', to_date('19-04-1987', 'dd-mm-yyyy'), 'ANALYST', 3000, 20, 7566);

insert into Employee (EMP_ID, EMP_NAME, EMP_NO, HIRE_DATE, JOB, SALARY, DEPT_ID, MNG_ID)
values (7844, 'TURNER', 'E7844', to_date('08-09-1981', 'dd-mm-yyyy'), 'SALESMAN', 1500, 30, 7698);

insert into Employee (EMP_ID, EMP_NAME, EMP_NO, HIRE_DATE, JOB, SALARY, DEPT_ID, MNG_ID)
values (7876, 'ADAMS', 'E7876', to_date('23-05-1987', 'dd-mm-yyyy'), 'CLERK', 1100, 20, 7698);

insert into Employee (EMP_ID, EMP_NAME, EMP_NO, HIRE_DATE, JOB, SALARY, DEPT_ID, MNG_ID)
values (7900, 'ADAMS', 'E7900', to_date('03-12-1981', 'dd-mm-yyyy'), 'CLERK', 950, 30, 7698);

insert into Employee (EMP_ID, EMP_NAME, EMP_NO, HIRE_DATE, JOB, SALARY, DEPT_ID, MNG_ID)
values (7934, 'MILLER', 'E7934', to_date('23-01-1982', 'dd-mm-yyyy'), 'CLERK', 1300, 10, 7698);

-------------------------------------------------------------------------------------------------

insert into Salary_Grade (GRADE, HIGH_SALARY, LOW_SALARY)
values (1, 9999, 3001);

5. Oracle - Creation Script

  • ORACLE SCRIPT:
create table DEPARTMENT (
       DEPT_ID number(10,0) not null,
       DEPT_NAME varchar2(255 char) not null,
       DEPT_NO varchar2(20 char) not null unique,
       LOCATION varchar2(255 char),
       primary key (DEPT_ID)
   );

   create table EMPLOYEE (
       EMP_ID number(19,0) not null,
       EMP_NAME varchar2(50 char) not null,
       EMP_NO varchar2(20 char) not null unique,
       HIRE_DATE date not null,
       IMAGE blob,
       JOB varchar2(30 char) not null,
       SALARY float not null,
       DEPT_ID number(10,0) not null,
       MNG_ID number(19,0),
       primary key (EMP_ID)
   );

   create table SALARY_GRADE (
       GRADE number(10,0) not null,
       HIGH_SALARY float not null,
       LOW_SALARY float not null,
       primary key (GRADE)
   );

   create table TIMEKEEPER (
       Timekeeper_Id varchar2(36 char) not null,
       Date_Time timestamp not null,
       In_Out char(1 char) not null,
       EMP_ID number(19,0) not null,
       primary key (Timekeeper_Id)
   );

   alter table EMPLOYEE
       add constraint FK75C8D6AE269A3C9
       foreign key (DEPT_ID)
       references DEPARTMENT;

   alter table EMPLOYEE
       add constraint FK75C8D6AE6106A42
       foreign key (EMP_ID)
       references EMPLOYEE;

   alter table EMPLOYEE
       add constraint FK75C8D6AE13C12F64
       foreign key (MNG_ID)
       references EMPLOYEE;

   alter table TIMEKEEPER
       add constraint FK744D9BFF6106A42
       foreign key (EMP_ID)
       references EMPLOYEE;
  • INSERT DATA (ORACLE)
insert into Department (DEPT_ID, DEPT_NAME, DEPT_NO, LOCATION)
values (10, 'ACCOUNTING', 'D10', 'NEW YORK');

insert into Department (DEPT_ID, DEPT_NAME, DEPT_NO, LOCATION)
values (20, 'RESEARCH', 'D20', 'DALLAS');

insert into Department (DEPT_ID, DEPT_NAME, DEPT_NO, LOCATION)
values (30, 'SALES', 'D30', 'CHICAGO');

insert into Department (DEPT_ID, DEPT_NAME, DEPT_NO, LOCATION)
values (40, 'OPERATIONS', 'D40', 'BOSTON');

-------------------------------------------------------------------------------------------------


insert into Employee (EMP_ID, EMP_NAME, EMP_NO, HIRE_DATE, JOB, SALARY, DEPT_ID, MNG_ID)
values (7839, 'KING', 'E7839', to_date('17-11-1981', 'dd-mm-yyyy'), 'PRESIDENT', 5000, 10, null);

insert into Employee (EMP_ID, EMP_NAME, EMP_NO, HIRE_DATE, JOB, SALARY, DEPT_ID, MNG_ID)
values (7566, 'JONES', 'E7566', to_date('02-04-1981', 'dd-mm-yyyy'), 'MANAGER', 2975, 20, 7839);

insert into Employee (EMP_ID, EMP_NAME, EMP_NO, HIRE_DATE, JOB, SALARY, DEPT_ID, MNG_ID)
values (7902, 'FORD', 'E7902', to_date('03-12-1981', 'dd-mm-yyyy'), 'ANALYST', 3000, 20, 7566);

insert into Employee (EMP_ID, EMP_NAME, EMP_NO, HIRE_DATE, JOB, SALARY, DEPT_ID, MNG_ID)
values (7369, 'SMITH', 'E7369', to_date('17-12-1980', 'dd-mm-yyyy'), 'CLERK', 800, 20, 7902);

insert into Employee (EMP_ID, EMP_NAME, EMP_NO, HIRE_DATE, JOB, SALARY, DEPT_ID, MNG_ID)
values (7698, 'BLAKE', 'E7698', to_date('01-05-1981', 'dd-mm-yyyy'), 'MANAGER', 2850, 30, 7839);

insert into Employee (EMP_ID, EMP_NAME, EMP_NO, HIRE_DATE, JOB, SALARY, DEPT_ID, MNG_ID)
values (7499, 'ALLEN', 'E7499', to_date('20-02-1981', 'dd-mm-yyyy'), 'SALESMAN', 1600, 30, 7698);

insert into Employee (EMP_ID, EMP_NAME, EMP_NO, HIRE_DATE, JOB, SALARY, DEPT_ID, MNG_ID)
values (7521, 'WARD', 'E7521', to_date('22-02-1981', 'dd-mm-yyyy'), 'SALESMAN', 1250, 30, 7698);

insert into Employee (EMP_ID, EMP_NAME, EMP_NO, HIRE_DATE, JOB, SALARY, DEPT_ID, MNG_ID)
values (7654, 'MARTIN', 'E7654', to_date('28-09-1981', 'dd-mm-yyyy'), 'SALESMAN', 1250, 30, 7698);

insert into Employee (EMP_ID, EMP_NAME, EMP_NO, HIRE_DATE, JOB, SALARY, DEPT_ID, MNG_ID)
values (7782, 'CLARK', 'E7782', to_date('09-06-1981', 'dd-mm-yyyy'), 'MANAGER', 2450, 30, 7839);

insert into Employee (EMP_ID, EMP_NAME, EMP_NO, HIRE_DATE, JOB, SALARY, DEPT_ID, MNG_ID)
values (7788, 'SCOTT', 'E7788', to_date('19-04-1987', 'dd-mm-yyyy'), 'ANALYST', 3000, 20, 7566);

insert into Employee (EMP_ID, EMP_NAME, EMP_NO, HIRE_DATE, JOB, SALARY, DEPT_ID, MNG_ID)
values (7844, 'TURNER', 'E7844', to_date('08-09-1981', 'dd-mm-yyyy'), 'SALESMAN', 1500, 30, 7698);

insert into Employee (EMP_ID, EMP_NAME, EMP_NO, HIRE_DATE, JOB, SALARY, DEPT_ID, MNG_ID)
values (7876, 'ADAMS', 'E7876', to_date('23-05-1987', 'dd-mm-yyyy'), 'CLERK', 1100, 20, 7698);

insert into Employee (EMP_ID, EMP_NAME, EMP_NO, HIRE_DATE, JOB, SALARY, DEPT_ID, MNG_ID)
values (7900, 'ADAMS', 'E7900', to_date('03-12-1981', 'dd-mm-yyyy'), 'CLERK', 950, 30, 7698);

insert into Employee (EMP_ID, EMP_NAME, EMP_NO, HIRE_DATE, JOB, SALARY, DEPT_ID, MNG_ID)
values (7934, 'MILLER', 'E7934', to_date('23-01-1982', 'dd-mm-yyyy'), 'CLERK', 1300, 10, 7698);

-------------------------------------------------------------------------------------------------

insert into Salary_Grade (GRADE, HIGH_SALARY, LOW_SALARY)
values (1, 9999, 3001);
