Die Anleitung zu Spring MVC mit FreeMarker

Was ist FreeMarker ?
Maven Web App Project erstellen
web.xml & pom.xml konfigurieren
Spring MVC konfigurieren
Model, Form, Controller
FreeMarker Views

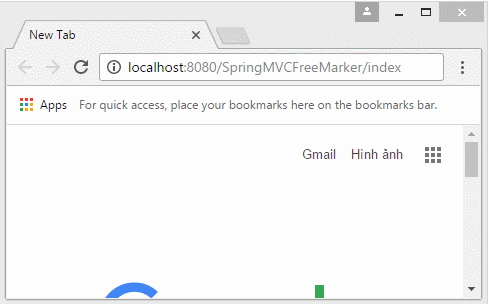

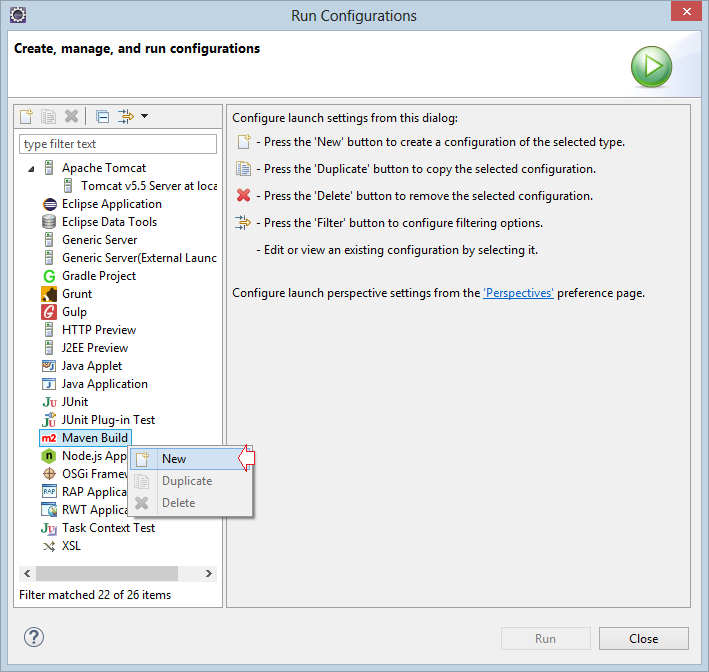

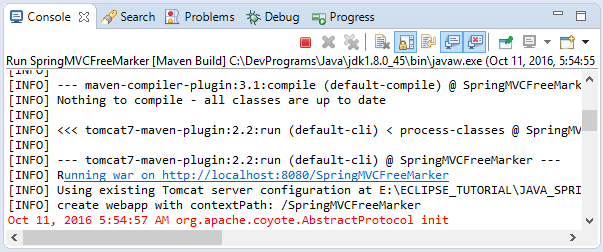

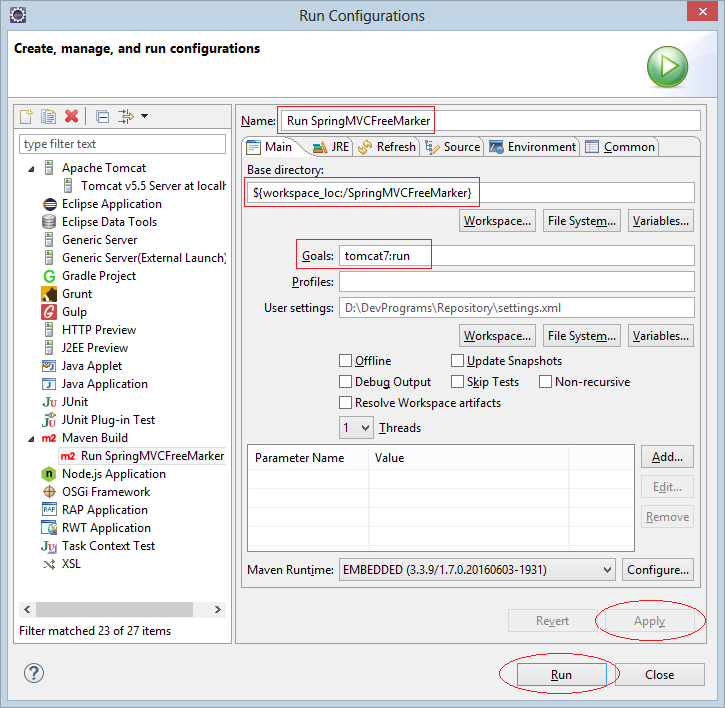

Die Applikation laufen

1. Was ist FreeMarker ?

FreeMarker ist ein Technologie in View, damit die Daten angezeigt werden. FreeMarker kann statt Jsp für die Anzeige der Daten verwendet sein. FreeMarke ist eigentlich ein Textdokument.

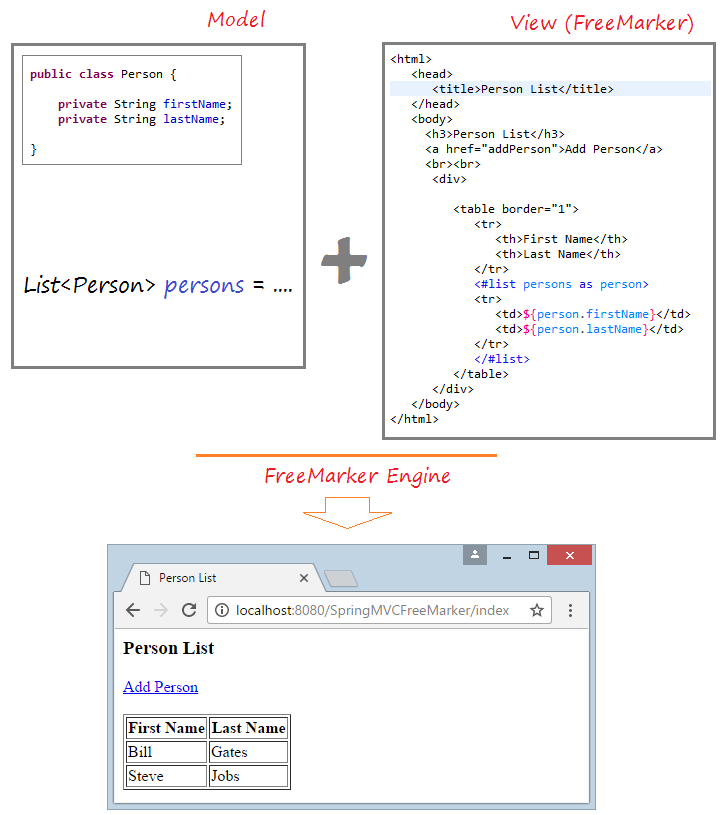

FreeMarker engine

FreeMarker Engine wird die Daten aus Model und FreeMarker template zur Erstellung der HTML Daten verbinden

Beispiel

See more:
Die Anleitung zu Spring Boot und FreeMarker

2. Maven Web App Project erstellen

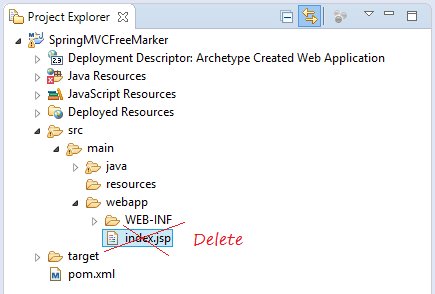

Erstellung einer leeren Maven Web App Projekt auf Eclipse mit Name "SpringMVCFreeMarker".

Erstellen Sie ein Empty Maven Web App Project in Eclipse

3. web.xml & pom.xml konfigurieren

WebApp >= 3 benutzen

web.xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns="http://java.sun.com/xml/ns/javaee"
    xsi:schemaLocation="http://java.sun.com/xml/ns/javaee
    http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd"
    id="WebApp_ID" version="3.0">

    <display-name>SpringMVCFreeMarker</display-name>

</web-app>

Anmeldung der benutzten Bibliothek

pom.xml

<project xmlns="http://maven.apache.org/POM/4.0.0"
  xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0
                      http://maven.apache.org/maven-v4_0_0.xsd">

  <modelVersion>4.0.0</modelVersion>
  <groupId>org.o7planning</groupId>
  <artifactId>SpringMVCFreeMarker</artifactId>
  <packaging>war</packaging>
  <version>0.0.1-SNAPSHOT</version>

  <name>SpringMVCFreeMarker Maven Webapp</name>
  <url>http://maven.apache.org</url>
  <dependencies>


    <dependency>
      <groupId>junit</groupId>
      <artifactId>junit</artifactId>
      <version>3.8.1</version>
      <scope>test</scope>

    </dependency>

        <!-- Servlet Library -->
        <!-- http://mvnrepository.com/artifact/javax.servlet/javax.servlet-api -->
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>javax.servlet-api</artifactId>
            <version>3.1.0</version>
            <scope>provided</scope>
        </dependency>


        <!-- Spring dependencies -->
        <!-- http://mvnrepository.com/artifact/org.springframework/spring-core -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-core</artifactId>
            <version>4.3.3.RELEASE</version>
        </dependency>

        <!-- http://mvnrepository.com/artifact/org.springframework/spring-web -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-web</artifactId>
            <version>4.3.3.RELEASE</version>
        </dependency>

        <!-- http://mvnrepository.com/artifact/org.springframework/spring-webmvc -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
            <version>4.3.3.RELEASE</version>
        </dependency>

        <!-- https://mvnrepository.com/artifact/org.springframework/spring-context-support -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context-support</artifactId>
            <version>4.3.3.RELEASE</version>
        </dependency>


        <!-- https://mvnrepository.com/artifact/org.freemarker/freemarker -->
        <dependency>
            <groupId>org.freemarker</groupId>
            <artifactId>freemarker</artifactId>
            <version>2.3.23</version>
        </dependency>


    </dependencies>


    <build>
        <finalName>SpringMVCFreeMarker</finalName>
        <plugins>

            <!-- Config: Maven Tomcat Plugin -->
            <!-- http://mvnrepository.com/artifact/org.apache.tomcat.maven/tomcat7-maven-plugin -->
            <plugin>
                <groupId>org.apache.tomcat.maven</groupId>
                <artifactId>tomcat7-maven-plugin</artifactId>
                <version>2.2</version>
                <!-- Config: contextPath and Port (Default: /SpringMVCFreeMarker : 8080) -->
                <!--
                <configuration>
                    <path>/</path>
                    <port>8899</port>
                </configuration>
                -->
            </plugin>
        </plugins>
    </build>

</project>

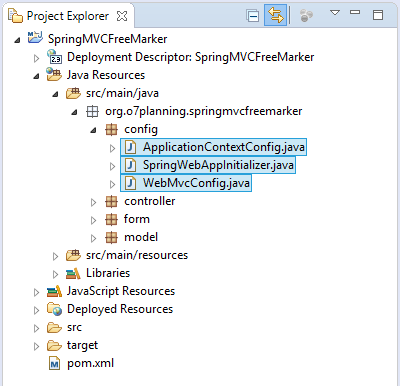

4. Spring MVC konfigurieren

SpringWebAppInitializer.java

package org.o7planning.springmvcfreemarker.config;

import javax.servlet.FilterRegistration;
import javax.servlet.ServletContext;
import javax.servlet.ServletException;
import javax.servlet.ServletRegistration;

import org.springframework.web.WebApplicationInitializer;
import org.springframework.web.context.ContextLoaderListener;
import org.springframework.web.context.support.AnnotationConfigWebApplicationContext;
import org.springframework.web.filter.CharacterEncodingFilter;
import org.springframework.web.servlet.DispatcherServlet;

public class SpringWebAppInitializer implements WebApplicationInitializer {

    @Override
    public void onStartup(ServletContext servletContext) throws ServletException {
        AnnotationConfigWebApplicationContext appContext = new AnnotationConfigWebApplicationContext();
        appContext.register(ApplicationContextConfig.class);

        // Dispatcher Servlet
        ServletRegistration.Dynamic dispatcher = servletContext.addServlet("SpringDispatcher",
                new DispatcherServlet(appContext));
        dispatcher.setLoadOnStartup(1);
        dispatcher.addMapping("/");


        dispatcher.setInitParameter("contextClass", appContext.getClass().getName());

        servletContext.addListener(new ContextLoaderListener(appContext));

        // UTF8 Charactor Filter.
        FilterRegistration.Dynamic fr = servletContext.addFilter("encodingFilter", CharacterEncodingFilter.class);

        fr.setInitParameter("encoding", "UTF-8");
        fr.setInitParameter("forceEncoding", "true");
        fr.addMappingForUrlPatterns(null, true, "/*");
    }

}

WebMvcConfig.java

package org.o7planning.springmvcfreemarker.config;

import org.springframework.context.annotation.Configuration;
import org.springframework.web.servlet.config.annotation.DefaultServletHandlerConfigurer;
import org.springframework.web.servlet.config.annotation.EnableWebMvc;
import org.springframework.web.servlet.config.annotation.ResourceHandlerRegistry;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurerAdapter;


@Configuration
@EnableWebMvc
public class WebMvcConfig extends WebMvcConfigurerAdapter {


    @Override
    public void addResourceHandlers(ResourceHandlerRegistry registry) {
         // Default.
    }


    @Override
    public void configureDefaultServletHandling(DefaultServletHandlerConfigurer configurer) {
        configurer.enable();
    }

}

In der class ApplicationContextConfig sollen Sie 2 Spring Bean - viewResolver & freemarkerConfig anmelden

ApplicationContextConfig.java

package org.o7planning.springmvcfreemarker.config;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.ComponentScan;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.servlet.ViewResolver;
import org.springframework.web.servlet.view.freemarker.FreeMarkerConfigurer;
import org.springframework.web.servlet.view.freemarker.FreeMarkerViewResolver;

@Configuration

@ComponentScan("org.o7planning.springmvcfreemarker.*")

public class ApplicationContextConfig {

    @Bean(name = "viewResolver")
    public ViewResolver getViewResolver() {
        FreeMarkerViewResolver viewResolver = new FreeMarkerViewResolver();
        System.out.println("Create Bean viewResolver");

        viewResolver.setCache(true);
        viewResolver.setPrefix("");
        viewResolver.setSuffix(".ftl");
        return viewResolver;
    }

    @Bean(name = "freemarkerConfig")
    public FreeMarkerConfigurer getFreemarkerConfig() {
        FreeMarkerConfigurer config = new FreeMarkerConfigurer();

        // Folder containing FreeMarker templates.
        config.setTemplateLoaderPath("/WEB-INF/views/");
        return config;
    }

}

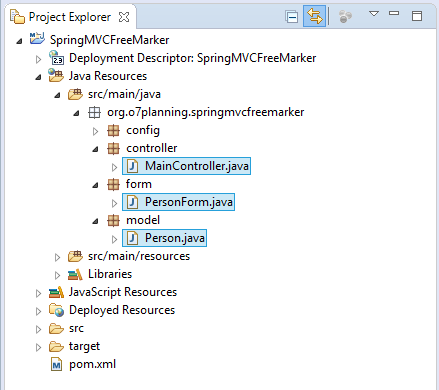

5. Model, Form, Controller

Person.java

package org.o7planning.springmvcfreemarker.model;

public class Person {

    private String firstName;
    private String lastName;

    public Person() {

    }

    public Person(String firstName, String lastName) {
        this.firstName = firstName;
        this.lastName = lastName;
    }

    public String getFirstName() {
        return firstName;
    }

    public void setFirstName(String firstName) {
        this.firstName = firstName;
    }

    public String getLastName() {
        return lastName;
    }

    public void setLastName(String lastName) {
        this.lastName = lastName;
    }

}

PersonForm.java

package org.o7planning.springmvcfreemarker.form;

public class PersonForm {

    private String firstName;
    private String lastName;

    public String getFirstName() {
        return firstName;
    }

    public void setFirstName(String firstName) {
        this.firstName = firstName;
    }

    public String getLastName() {
        return lastName;
    }

    public void setLastName(String lastName) {
        this.lastName = lastName;
    }

}

Controller:

MainController.java

package org.o7planning.springmvcfreemarker.controller;

import java.util.ArrayList;
import java.util.List;

import org.o7planning.springmvcfreemarker.form.PersonForm;
import org.o7planning.springmvcfreemarker.model.Person;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.ModelAttribute;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;

@Controller
public class MainController {

    private static List<Person> persons = new ArrayList<Person>();

    static {
        persons.add(new Person("Bill", "Gates"));
        persons.add(new Person("Steve", "Jobs"));
    }

    @RequestMapping(value = { "/", "/index" }, method = RequestMethod.GET)
    public String index(Model model) {

        model.addAttribute("persons", persons);

        return "index";
    }

    @RequestMapping(value = { "/addPerson" }, method = RequestMethod.GET)
    public String addPersonForm(Model model) {

        PersonForm personForm = new PersonForm();
        model.addAttribute("personForm", personForm);

        return "addPerson";
    }

    @RequestMapping(value = { "/addPerson" }, method = RequestMethod.POST)
    public String addPersonSave(Model model, //
            @ModelAttribute("personForm") PersonForm personForm) {

        String firstName = personForm.getFirstName();
        String lastName = personForm.getLastName();

        if (firstName != null && firstName.length() > 0 //
                && lastName != null && lastName.length() > 0) {
            Person newPerson = new Person(firstName, lastName);
            persons.add(newPerson);

            return "redirect:/index";
        }
        String error = "First Name & Last Name is required!";
        model.addAttribute("errorMessage", error);
        return "addPerson";
    }

}

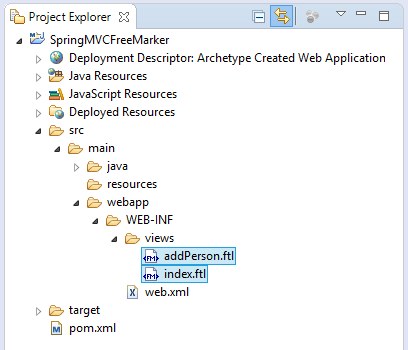

6. FreeMarker Views

/WEB-INF/views/index.ftl

<html>
   <head>
      <title>Person List</title>
   </head>
   <body>
     <h3>Person List</h3>
     <a href="addPerson">Add Person</a>
     <br><br>
      <div>

         <table border="1">
            <tr>
               <th>First Name</th>
               <th>Last Name</th>
            </tr>
            <#list persons as person>
            <tr>
               <td>${person.firstName}</td>
               <td>${person.lastName}</td>
            </tr>
            </#list>
         </table>
      </div>
   </body>
</html>

/WEB-INF/views/addPerson.ftl

<!--
   freemarker macros have to be imported into a namespace.
   We strongly recommend sticking to 'spring'
   -->

<#import "/spring.ftl" as spring/>

<html>
   <head>
      <title>Add Person</title>
   </head>
   <body>
      <#if errorMessage??>
      <div style="color:red;font-style:italic;">
         ${errorMessage}
      </div>
      </#if>

      <div>
         <fieldset>
            <legend>Add Person</legend>
            <form name="person" action="" method="POST">
               First Name: <@spring.formInput "personForm.firstName" "" "text"/>    <br/>
               Last Name: <@spring.formInput "personForm.lastName" "" "text"/>    <br/>
               <input type="submit" value="Create" />
            </form>
         </fieldset>
      </div>


   </body>

</html>
