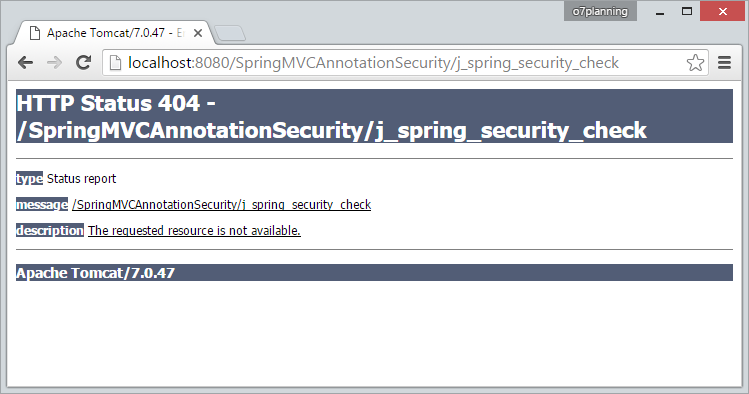

Fix Error!

See more:
Erstellen Sie eine Login-Anwendung mit Spring Boot, Spring Security, JPA
Erstellen Sie eine Login-Anwendung mit Spring Boot, Spring Security, Spring JDBC

1. Demo

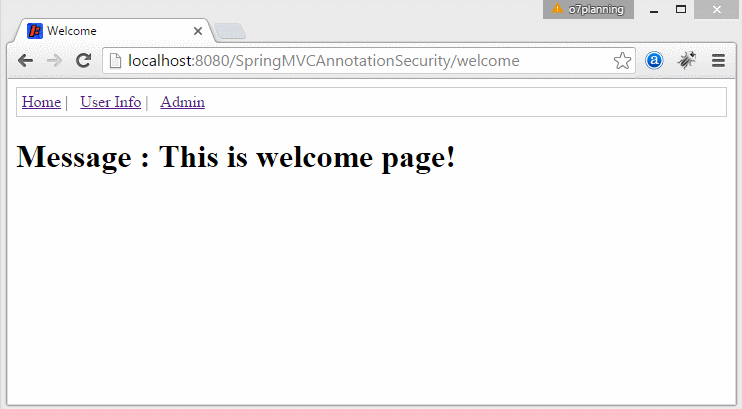

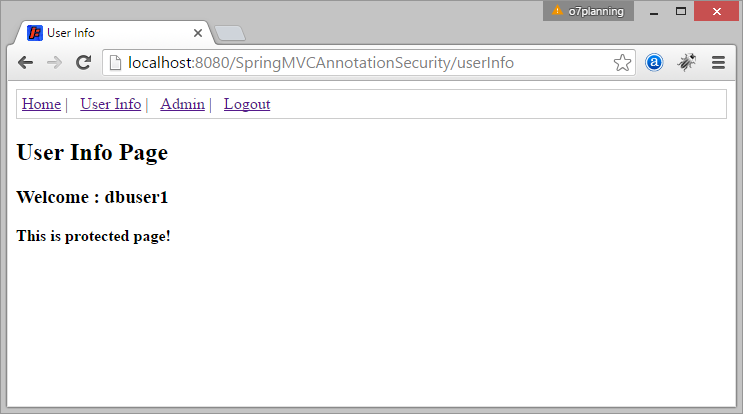

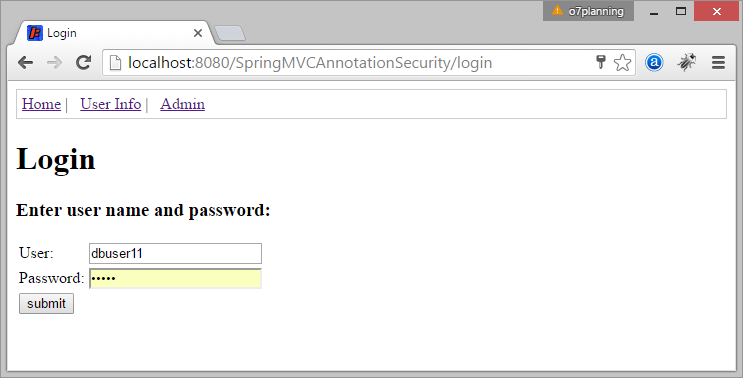

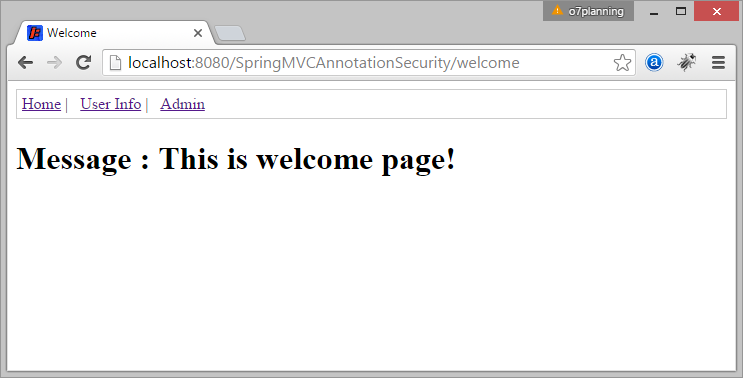

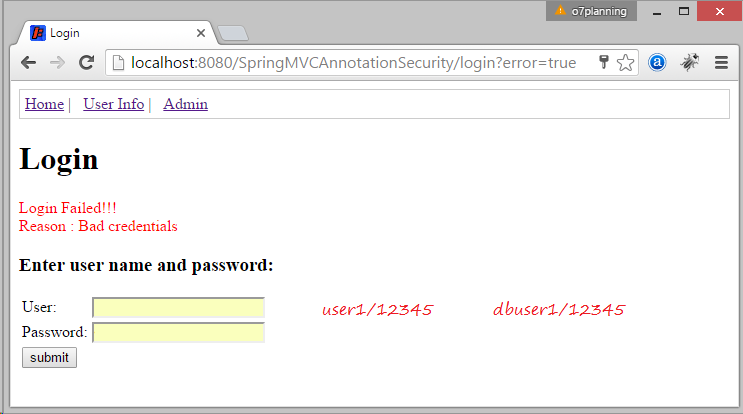

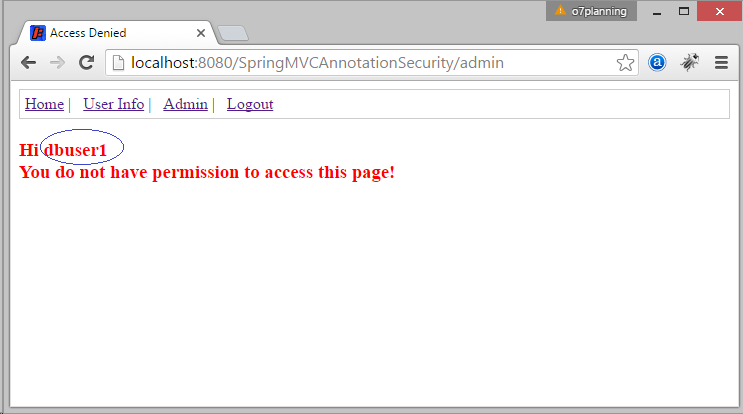

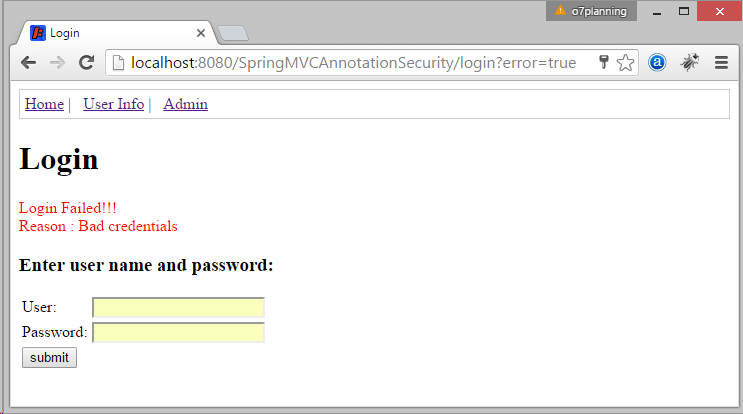

Die Applikation vorschauen

2. Database vorbereiten

ORACLE:

-- Create table
create table USERS
(
  USERNAME VARCHAR2(36) not null,
  PASSWORD VARCHAR2(36) not null,
  ENABLED  NUMBER(1) not null
) ;

alter table USERS
  add constraint USER_PK primary key (USERNAME);

---------------------

-- Create table
create table USER_ROLES
(
  ROLE_ID   VARCHAR2(50) not null,
  USERNAME  VARCHAR2(36) not null,
  USER_ROLE VARCHAR2(30) not null
) ;

alter table USER_ROLES
  add constraint USER_ROLE_PK primary key (ROLE_ID);

alter table USER_ROLES
  add constraint USER_ROLE_UK unique (USERNAME, USER_ROLE);

-------------------------------

insert into users (USERNAME, PASSWORD, ENABLED)
values ('dbuser1', '12345', 1);

insert into users (USERNAME, PASSWORD, ENABLED)
values ('dbadmin1', '12345', 1);


insert into User_Roles (ROLE_ID, USERNAME, USER_ROLE)
values ('1', 'dbuser1', 'USER');

insert into User_Roles (ROLE_ID, USERNAME, USER_ROLE)
values ('2', 'dbadmin1', 'ADMIN');

insert into User_Roles (ROLE_ID, USERNAME, USER_ROLE)
values ('3', 'dbadmin1', 'USER');

-------------------------------
Commit;

MySQL & SQL Server:

-- Create table
create table USERS
(
 USERNAME VARCHAR(36) not null,
 PASSWORD VARCHAR(36) not null,
 ENABLED  smallint not null
) ;

alter table USERS
 add constraint USER_PK primary key (USERNAME);

---------------------

-- Create table
create table USER_ROLES
(
 ROLE_ID   VARCHAR(50) not null,
 USERNAME  VARCHAR(36) not null,
 USER_ROLE VARCHAR(30) not null
) ;

alter table USER_ROLES
 add constraint USER_ROLE_PK primary key (ROLE_ID);

alter table USER_ROLES
 add constraint USER_ROLE_UK unique (USERNAME, USER_ROLE);

-------------------------------

insert into users (USERNAME, PASSWORD, ENABLED)
values ('dbuser1', '12345', 1);

insert into users (USERNAME, PASSWORD, ENABLED)
values ('dbadmin1', '12345', 1);


insert into User_Roles (ROLE_ID, USERNAME, USER_ROLE)
values ('1', 'dbuser1', 'USER');

insert into User_Roles (ROLE_ID, USERNAME, USER_ROLE)
values ('2', 'dbadmin1', 'ADMIN');

insert into User_Roles (ROLE_ID, USERNAME, USER_ROLE)
values ('3', 'dbadmin1', 'USER');

3. Das Projekt erstellen

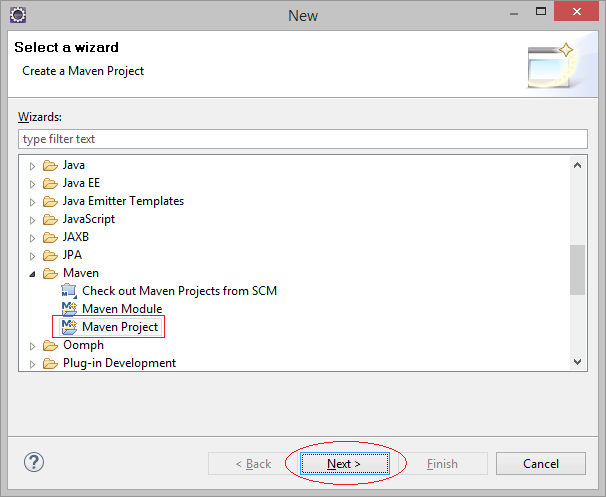

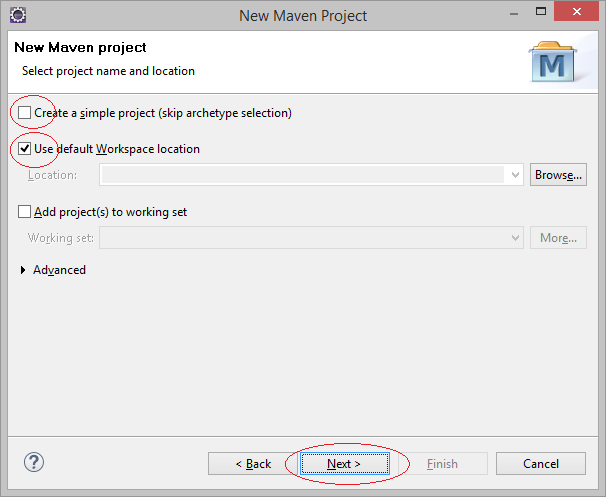

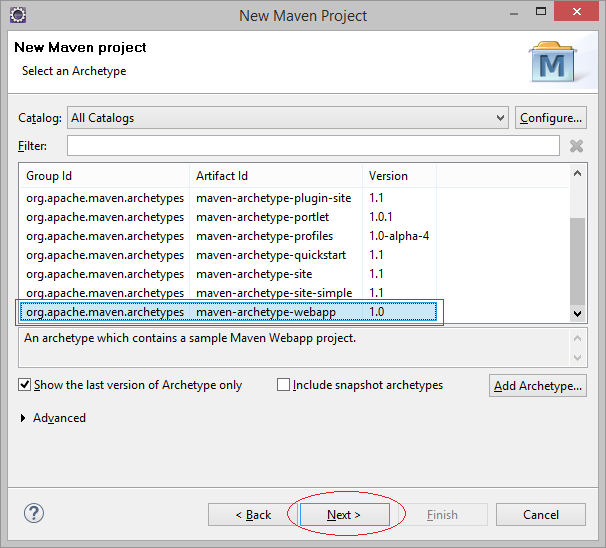

File/New/Other...

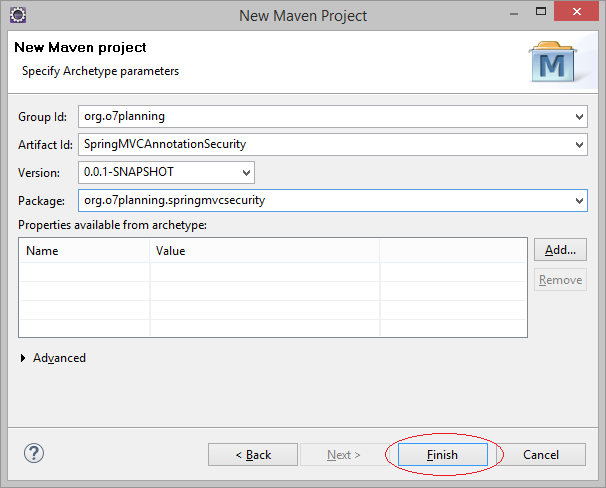

Geben Sie ein

Group ID: org.o7planning
Artifact ID: SpringMVCAnnotationSecurity
Package: org.o7planning.tutorial.springmvcsecurity

Das Projekt wird erstellt

Sie sollen keine Sorge für die Fehleranmeldung haben wenn das Projekt erstellt wird. Der Grund liegt darin, Sie erklärt die Bibliothek Servlet nicht.

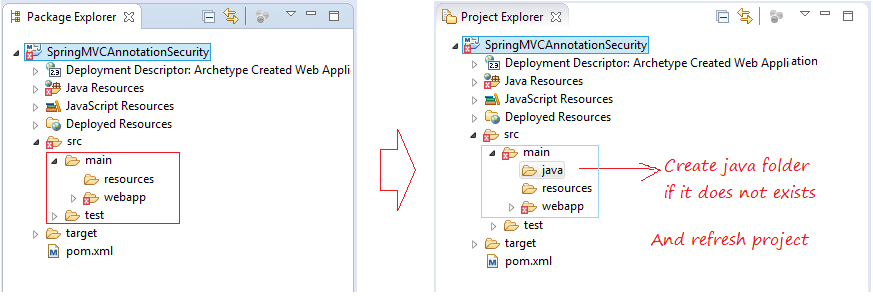

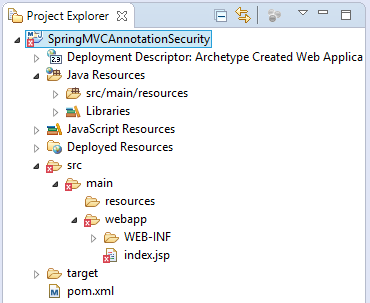

Die Struktur von Projekt ändern

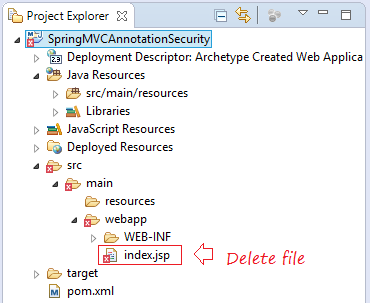

Die File index.jsp sehen

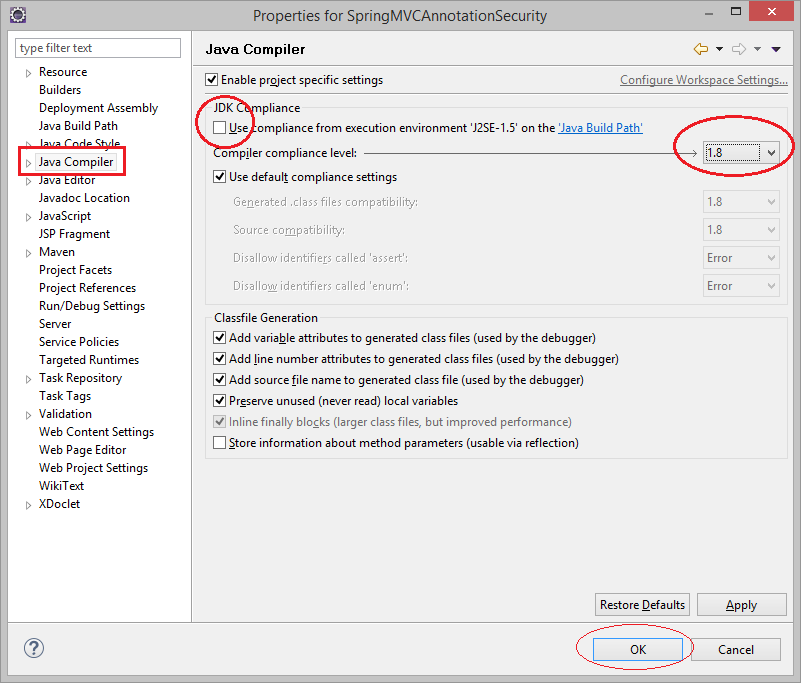

Klicken Sie die Rechtmaustaste auf Projekt und wählen Sie Properties:

4. Maven & web.xml konfigurieren

WebApp 3.x.konfigurieren

web.xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
 xmlns="http://java.sun.com/xml/ns/javaee"
 xsi:schemaLocation="http://java.sun.com/xml/ns/javaee
          http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd"
 id="WebApp_ID" version="3.0">

 <display-name>Spring MVC Security</display-name>


</web-app>

Maven:

pom.xml

<project xmlns="http://maven.apache.org/POM/4.0.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0
 http://maven.apache.org/maven-v4_0_0.xsd">

<modelVersion>4.0.0</modelVersion>
<groupId>org.o7planning</groupId>
<artifactId>SpringMVCAnnotationSecurity</artifactId>
<packaging>war</packaging>
<version>0.0.1-SNAPSHOT</version>
<name>SpringMVCAnnotationSecurity Maven Webapp</name>
<url>http://maven.apache.org</url>




  <properties>
      <!-- Generic properties -->
      <java.version>1.7</java.version>
      <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
      <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
  </properties>


  <repositories>
      <!-- Repository for ORACLE JDBC Driver -->
      <repository>
          <id>codelds</id>
          <url>https://code.lds.org/nexus/content/groups/main-repo</url>
      </repository>
  </repositories>

  <dependencies>

      <!-- Spring framework START -->
      <!-- http://mvnrepository.com/artifact/org.springframework/spring-core -->
      <dependency>
          <groupId>org.springframework</groupId>
          <artifactId>spring-core</artifactId>
          <version>4.2.5.RELEASE</version>
      </dependency>

      <!-- http://mvnrepository.com/artifact/org.springframework/spring-web -->
      <dependency>
          <groupId>org.springframework</groupId>
          <artifactId>spring-web</artifactId>
          <version>4.2.5.RELEASE</version>
      </dependency>

      <!-- http://mvnrepository.com/artifact/org.springframework/spring-webmvc -->
      <dependency>
          <groupId>org.springframework</groupId>
          <artifactId>spring-webmvc</artifactId>
          <version>4.2.5.RELEASE</version>
      </dependency>



      <!-- http://mvnrepository.com/artifact/org.springframework/spring-jdbc -->
      <dependency>
          <groupId>org.springframework</groupId>
          <artifactId>spring-jdbc</artifactId>
          <version>4.2.5.RELEASE</version>
      </dependency>


      <!-- Spring framework END -->


      <!-- Spring Security Artifacts - START -->
      <!-- http://mvnrepository.com/artifact/org.springframework.security/spring-security-web -->
      <dependency>
          <groupId>org.springframework.security</groupId>
          <artifactId>spring-security-web</artifactId>
          <version>4.0.4.RELEASE</version>
      </dependency>

      <!-- http://mvnrepository.com/artifact/org.springframework.security/spring-security-config -->
      <dependency>
          <groupId>org.springframework.security</groupId>
          <artifactId>spring-security-config</artifactId>
          <version>4.0.4.RELEASE</version>
      </dependency>
      <!-- Spring Security Artifacts - END -->

      <!-- Jstl for jsp page -->
      <!-- http://mvnrepository.com/artifact/javax.servlet/jstl -->
      <dependency>
          <groupId>javax.servlet</groupId>
          <artifactId>jstl</artifactId>
          <version>1.2</version>
      </dependency>

      <!-- Servlet API -->
      <!-- http://mvnrepository.com/artifact/javax.servlet/javax.servlet-api -->
      <dependency>
          <groupId>javax.servlet</groupId>
          <artifactId>javax.servlet-api</artifactId>
          <version>3.1.0</version>
          <scope>provided</scope>
      </dependency>

      <!-- JSP API -->
      <!-- http://mvnrepository.com/artifact/javax.servlet.jsp/jsp-api -->
      <dependency>
          <groupId>javax.servlet.jsp</groupId>
          <artifactId>jsp-api</artifactId>
          <version>2.2</version>
          <scope>provided</scope>
      </dependency>

      <!-- MySQL JDBC driver -->
      <!-- http://mvnrepository.com/artifact/mysql/mysql-connector-java -->
      <dependency>
          <groupId>mysql</groupId>
          <artifactId>mysql-connector-java</artifactId>
          <version>5.1.34</version>
      </dependency>

      <!-- Oracle JDBC driver -->
      <dependency>
          <groupId>com.oracle</groupId>
          <artifactId>ojdbc6</artifactId>
          <version>11.2.0.3</version>
      </dependency>

      <!-- SQLServer JDBC driver (JTDS) -->
      <!-- http://mvnrepository.com/artifact/net.sourceforge.jtds/jtds -->
      <dependency>
          <groupId>net.sourceforge.jtds</groupId>
          <artifactId>jtds</artifactId>
          <version>1.3.1</version>
      </dependency>


  </dependencies>

  <build>
      <finalName>SpringMVCAnnotationSecurity</finalName>
      <plugins>

          <!-- Config: Maven Tomcat Plugin -->
          <!-- http://mvnrepository.com/artifact/org.apache.tomcat.maven/tomcat7-maven-plugin -->
          <plugin>
              <groupId>org.apache.tomcat.maven</groupId>
              <artifactId>tomcat7-maven-plugin</artifactId>
              <version>2.2</version>
              <!-- Config: contextPath and Port (Default: /SpringMVCAnnotationSecurity : 8080) -->
              <!--
              <configuration>
                  <path>/</path>
                  <port>8899</port>
              </configuration>
              -->
          </plugin>
      </plugins>
  </build>

</project>

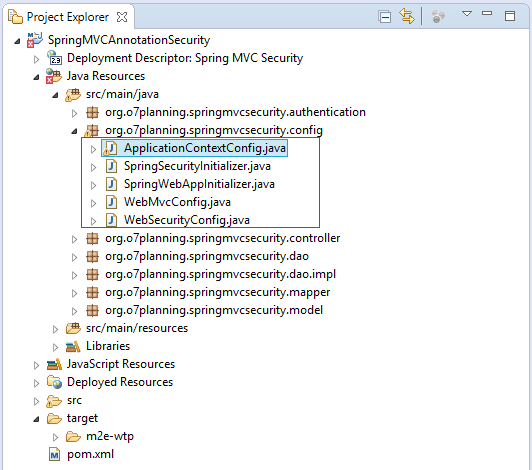

5. Spring MVC & Security konfigurieren

SpringWebAppInitializer.java

package org.o7planning.springmvcsecurity.config;

import javax.servlet.ServletContext;
import javax.servlet.ServletException;
import javax.servlet.ServletRegistration;

import org.springframework.web.WebApplicationInitializer;
import org.springframework.web.context.support.AnnotationConfigWebApplicationContext;
import org.springframework.web.servlet.DispatcherServlet;

public class SpringWebAppInitializer implements WebApplicationInitializer {

    @Override
    public void onStartup(ServletContext servletContext) throws ServletException {
        AnnotationConfigWebApplicationContext appContext = new AnnotationConfigWebApplicationContext();
        appContext.register(ApplicationContextConfig.class);

        ServletRegistration.Dynamic dispatcher = servletContext.addServlet("SpringDispatcher",
                new DispatcherServlet(appContext));
        dispatcher.setLoadOnStartup(1);
        dispatcher.addMapping("/");
    }

}

Die Klasse ApplicationContextConfig wird benutzt um die Inhalt vonSpring MVC zu konfiguriren, einschließend:

DataSource
Transaction Manager
Beans
...

ApplicationContextConfig.java

package org.o7planning.springmvcsecurity.config;

import javax.sql.DataSource;

import org.o7planning.springmvcsecurity.dao.UserInfoDAO;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.ComponentScan;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.Import;
import org.springframework.context.annotation.PropertySource;
import org.springframework.context.support.ResourceBundleMessageSource;
import org.springframework.core.env.Environment;
import org.springframework.jdbc.datasource.DataSourceTransactionManager;
import org.springframework.jdbc.datasource.DriverManagerDataSource;
import org.springframework.transaction.annotation.EnableTransactionManagement;
import org.springframework.web.servlet.view.InternalResourceViewResolver;

@Configuration
@ComponentScan("org.o7planning.springmvcsecurity.*")
@EnableTransactionManagement
// Load to Environment.
@PropertySource("classpath:datasource-cfg.properties")
public class ApplicationContextConfig {

  // The Environment class serves as the property holder
  // and stores all the properties loaded by the @PropertySource
  @Autowired
  private Environment env;

  @Autowired
  private UserInfoDAO userInfoDAO;

  @Bean
  public ResourceBundleMessageSource messageSource() {
      ResourceBundleMessageSource rb = new ResourceBundleMessageSource();
      // Load property in message/validator.properties
      rb.setBasenames(new String[] { "messages/validator" });
      return rb;
  }

  @Bean(name = "viewResolver")
  public InternalResourceViewResolver getViewResolver() {
      InternalResourceViewResolver viewResolver = new InternalResourceViewResolver();
      viewResolver.setPrefix("/WEB-INF/pages/");
      viewResolver.setSuffix(".jsp");
      return viewResolver;
  }

  @Bean(name = "dataSource")
  public DataSource getDataSource() {
      DriverManagerDataSource dataSource = new DriverManagerDataSource();

      // See: datasouce-cfg.properties
      dataSource.setDriverClassName(env.getProperty("ds.database-driver"));
      dataSource.setUrl(env.getProperty("ds.url"));
      dataSource.setUsername(env.getProperty("ds.username"));
      dataSource.setPassword(env.getProperty("ds.password"));

      System.out.println("## getDataSource: " + dataSource);

      return dataSource;
  }

  // Transaction Manager
  @Autowired
  @Bean(name = "transactionManager")
  public DataSourceTransactionManager getTransactionManager(DataSource dataSource) {
      DataSourceTransactionManager transactionManager = new DataSourceTransactionManager(dataSource);

      return transactionManager;
  }

}

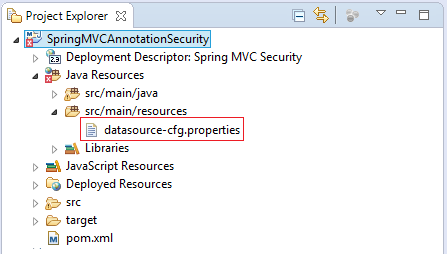

ApplicationContextConfig wird die File datasouce-cfg.xml lesen:

datasouce-cfg.properties (For Oracle)

# DataSource

ds.database-driver=oracle.jdbc.driver.OracleDriver
ds.url=jdbc:oracle:thin:@localhost:1521:db12c
ds.username=test
ds.password=12345

datasource-cfg.properties (For SQL Server)

# DataSource

ds.database-driver=net.sourceforge.jtds.jdbc.Driver
ds.url=jdbc:jtds:sqlserver://localhost:1433/simplehr;instance=SQLEXPRESS
ds.username=test
ds.password=12345

datasource-cfg.properties (For MySQL)

# DataSource

ds.database-driver=com.mysql.jdbc.Driver
ds.url=jdbc:mysql://localhost:3306/mydatabase
ds.username=root
ds.password=12345

WebMvcConfig.java

package org.o7planning.springmvcsecurity.config;

import java.nio.charset.Charset;
import java.util.Arrays;
import java.util.List;

import org.springframework.context.annotation.Configuration;
import org.springframework.http.MediaType;
import org.springframework.http.converter.HttpMessageConverter;
import org.springframework.http.converter.StringHttpMessageConverter;
import org.springframework.web.servlet.config.annotation.DefaultServletHandlerConfigurer;
import org.springframework.web.servlet.config.annotation.EnableWebMvc;
import org.springframework.web.servlet.config.annotation.ResourceHandlerRegistry;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurerAdapter;

@Configuration
@EnableWebMvc
public class WebMvcConfig extends WebMvcConfigurerAdapter {

   private static final Charset UTF8 = Charset.forName("UTF-8");

   // Config UTF-8 Encoding.
   @Override
   public void configureMessageConverters(List<HttpMessageConverter<?>> converters) {
       StringHttpMessageConverter stringConverter = new StringHttpMessageConverter();
       stringConverter.setSupportedMediaTypes(Arrays.asList(new MediaType("text", "plain", UTF8)));
       converters.add(stringConverter);

       // Add other converters ...
   }

   // Static Resource Config
   // equivalents for <mvc:resources/> tags
   @Override
   public void addResourceHandlers(ResourceHandlerRegistry registry) {
       registry.addResourceHandler("/css/**").addResourceLocations("/css/").setCachePeriod(31556926);
       registry.addResourceHandler("/img/**").addResourceLocations("/img/").setCachePeriod(31556926);
       registry.addResourceHandler("/js/**").addResourceLocations("/js/").setCachePeriod(31556926);
   }

   // Equivalent for <mvc:default-servlet-handler/> tag
   @Override
   public void configureDefaultServletHandling(DefaultServletHandlerConfigurer configurer) {
       configurer.enable();
   }

}

SpringSecurityInitializer.java

package org.o7planning.springmvcsecurity.config;

import org.springframework.security.web.context.AbstractSecurityWebApplicationInitializer;


public class SpringSecurityInitializer extends AbstractSecurityWebApplicationInitializer {

   // Do nothing

}

WebSecurityConfig.java

package org.o7planning.springmvcsecurity.config;

import org.o7planning.springmvcsecurity.authentication.MyDBAuthenticationService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.config.annotation.authentication.builders.AuthenticationManagerBuilder;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity;
import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;

@Configuration
// @EnableWebSecurity = @EnableWebMVCSecurity + Extra features
@EnableWebSecurity
public class WebSecurityConfig extends WebSecurityConfigurerAdapter {


    @Autowired
    MyDBAuthenticationService myDBAauthenticationService;

    @Autowired
    public void configureGlobal(AuthenticationManagerBuilder auth) throws Exception {

        // Users in memory.

        auth.inMemoryAuthentication().withUser("user1").password("12345").roles("USER");
        auth.inMemoryAuthentication().withUser("admin1").password("12345").roles("USER, ADMIN");

        // For User in database.
        auth.userDetailsService(myDBAauthenticationService);

    }

    @Override
    protected void configure(HttpSecurity http) throws Exception {

        http.csrf().disable();

        // The pages does not require login
        http.authorizeRequests().antMatchers("/", "/welcome", "/login", "/logout").permitAll();

        // /userInfo page requires login as USER or ADMIN.
        // If no login, it will redirect to /login page.
        http.authorizeRequests().antMatchers("/userInfo").access("hasAnyRole('ROLE_USER', 'ROLE_ADMIN')");

        // For ADMIN only.
        http.authorizeRequests().antMatchers("/admin").access("hasRole('ROLE_ADMIN')");

        // When the user has logged in as XX.
        // But access a page that requires role YY,
        // AccessDeniedException will throw.
        http.authorizeRequests().and().exceptionHandling().accessDeniedPage("/403");

        // Config for Login Form
        http.authorizeRequests().and().formLogin()//
                // Submit URL of login page.
                .loginProcessingUrl("/j_spring_security_check") // Submit URL
                .loginPage("/login")//
                .defaultSuccessUrl("/userInfo")//
                .failureUrl("/login?error=true")//
                .usernameParameter("username")//
                .passwordParameter("password")
                // Config for Logout Page
                .and().logout().logoutUrl("/logout").logoutSuccessUrl("/logoutSuccessful");

    }
}

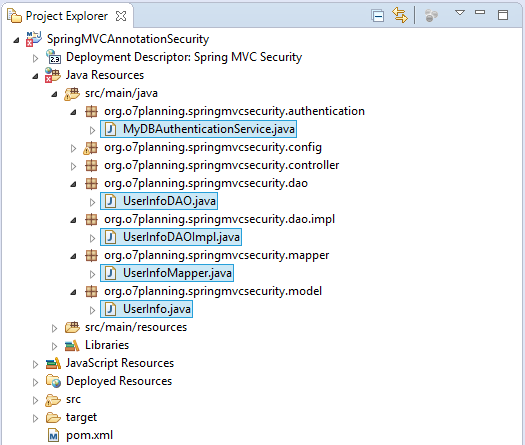

6. Die Klasse zur Teilnahme an der Sicherheit (Security)

Die Klasse UserInfo ist äquivalent mit der Tabelle USERS in Database

UserInfo.java

package org.o7planning.springmvcsecurity.model;

public class UserInfo {

    private String userName;
    private String password;

    public UserInfo()  {

    }

    public UserInfo(String userName, String password) {
        this.userName = userName;
        this.password = password;
    }

    public String getUserName() {
        return userName;
    }

    public void setUserName(String userName) {
        this.userName = userName;
    }

    public String getPassword() {
        return password;
    }

    public void setPassword(String password) {
        this.password = password;
    }

}

Die Klasse UserInfoMapper benutzt um die Spalte im Befehl SQL äquivalent mit den Felder von Klasse UserInfo abzubilden

UserInfoMapper.java

package org.o7planning.springmvcsecurity.mapper;

import java.sql.ResultSet;
import java.sql.SQLException;

import org.o7planning.springmvcsecurity.model.UserInfo;
import org.springframework.jdbc.core.RowMapper;

public class UserInfoMapper implements RowMapper<UserInfo> {

    @Override
    public UserInfo mapRow(ResultSet rs, int rowNum) throws SQLException {

        String userName = rs.getString("Username");
        String password = rs.getString("Password");

        return new UserInfo(userName, password);
    }

}

UserInfoDAO.java

package org.o7planning.springmvcsecurity.dao;

import java.util.List;

import org.o7planning.springmvcsecurity.model.UserInfo;

public interface UserInfoDAO {

    public UserInfo findUserInfo(String userName);

    // [USER,AMIN,..]
    public List<String> getUserRoles(String userName);

}

UserInfoDAOImpl.java

package org.o7planning.springmvcsecurity.dao.impl;

import java.util.List;

import javax.sql.DataSource;

import org.o7planning.springmvcsecurity.dao.UserInfoDAO;
import org.o7planning.springmvcsecurity.mapper.UserInfoMapper;
import org.o7planning.springmvcsecurity.model.UserInfo;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.dao.EmptyResultDataAccessException;
import org.springframework.jdbc.core.support.JdbcDaoSupport;
import org.springframework.stereotype.Service;
import org.springframework.transaction.annotation.Transactional;

@Service
@Transactional
public class UserInfoDAOImpl extends JdbcDaoSupport implements UserInfoDAO {

    @Autowired
    public UserInfoDAOImpl(DataSource dataSource) {
        this.setDataSource(dataSource);
    }


    @Override
    public UserInfo findUserInfo(String userName) {
        String sql = "Select u.Username,u.Password "//
                + " from Users u where u.Username = ? ";

        Object[] params = new Object[] { userName };
        UserInfoMapper mapper = new UserInfoMapper();
        try {
            UserInfo userInfo = this.getJdbcTemplate().queryForObject(sql, params, mapper);
            return userInfo;
        } catch (EmptyResultDataAccessException e) {
            return null;
        }
    }


    @Override
    public List<String> getUserRoles(String userName) {
        String sql = "Select r.User_Role "//
                + " from User_Roles r where r.Username = ? ";

        Object[] params = new Object[] { userName };

        List<String> roles = this.getJdbcTemplate().queryForList(sql,params, String.class);

        return roles;
    }

}

Die Klasse MyDBAuthenticationService ist für die Anpassung der Bestätigung. Sie implementiert die Interface AuthenticationService.

MyDBAuthenticationService.java

package org.o7planning.springmvcsecurity.authentication;

import java.util.ArrayList;
import java.util.List;

import org.o7planning.springmvcsecurity.dao.UserInfoDAO;
import org.o7planning.springmvcsecurity.model.UserInfo;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.security.core.GrantedAuthority;
import org.springframework.security.core.authority.SimpleGrantedAuthority;
import org.springframework.security.core.userdetails.User;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.core.userdetails.UsernameNotFoundException;
import org.springframework.stereotype.Service;

@Service
public class MyDBAuthenticationService implements UserDetailsService {

    @Autowired
    private UserInfoDAO userInfoDAO;

    @Override
    public UserDetails loadUserByUsername(String username) throws UsernameNotFoundException {
        UserInfo userInfo = userInfoDAO.findUserInfo(username);
        System.out.println("UserInfo= " + userInfo);

        if (userInfo == null) {
            throw new UsernameNotFoundException("User " + username + " was not found in the database");
        }

        // [USER,ADMIN,..]
        List<String> roles= userInfoDAO.getUserRoles(username);

        List<GrantedAuthority> grantList= new ArrayList<GrantedAuthority>();
        if(roles!= null)  {
            for(String role: roles)  {
                // ROLE_USER, ROLE_ADMIN,..
                GrantedAuthority authority = new SimpleGrantedAuthority("ROLE_" + role);
                grantList.add(authority);
            }
        }

        UserDetails userDetails = (UserDetails) new User(userInfo.getUserName(), //
                userInfo.getPassword(),grantList);

        return userDetails;
    }

}

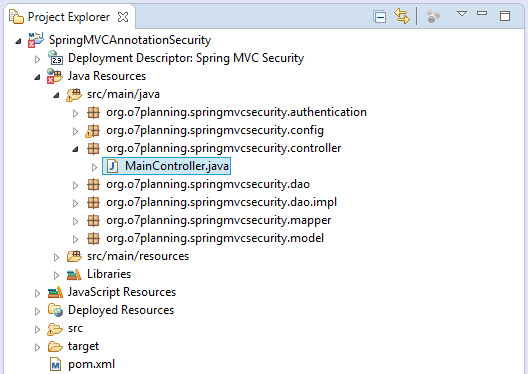

7. Spring MVC Controller

MainController.java

package org.o7planning.springmvcsecurity.controller;

import java.security.Principal;

import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;

@Controller
public class MainController {

   @RequestMapping(value = { "/", "/welcome" }, method = RequestMethod.GET)
   public String welcomePage(Model model) {
       model.addAttribute("title", "Welcome");
       model.addAttribute("message", "This is welcome page!");
       return "welcomePage";
   }

   @RequestMapping(value = "/admin", method = RequestMethod.GET)
   public String adminPage(Model model) {
       return "adminPage";
   }

   @RequestMapping(value = "/login", method = RequestMethod.GET)
   public String loginPage(Model model ) {

       return "loginPage";
   }

   @RequestMapping(value = "/logoutSuccessful", method = RequestMethod.GET)
   public String logoutSuccessfulPage(Model model) {
       model.addAttribute("title", "Logout");
       return "logoutSuccessfulPage";
   }

   @RequestMapping(value = "/userInfo", method = RequestMethod.GET)
   public String userInfo(Model model, Principal principal) {

       // After user login successfully.
       String userName = principal.getName();

       System.out.println("User Name: "+ userName);

       return "userInfoPage";
   }

   @RequestMapping(value = "/403", method = RequestMethod.GET)
   public String accessDenied(Model model, Principal principal) {

       if (principal != null) {
           model.addAttribute("message", "Hi " + principal.getName()
                   + "<br> You do not have permission to access this page!");
       } else {
           model.addAttribute("msg",
                   "You do not have permission to access this page!");
       }
       return "403Page";
   }
}

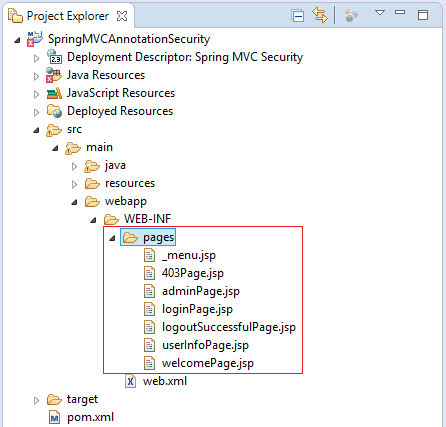

8. JSP Pages

_menu.jsp

<%@taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core"%>

<div style="border: 1px solid #ccc;padding:5px;margin-bottom:20px;">

  <a href="${pageContext.request.contextPath}/welcome">Home</a>

  | &nbsp;

   <a href="${pageContext.request.contextPath}/userInfo">User Info</a>

  | &nbsp;

  <a href="${pageContext.request.contextPath}/admin">Admin</a>

  <c:if test="${pageContext.request.userPrincipal.name != null}">

     | &nbsp;
     <a href="${pageContext.request.contextPath}/logout">Logout</a>

  </c:if>

</div>

403Page.jsp

<%@page session="false"%>
<html>
<head>
<title>Access Denied</title>
</head>
<body>
<jsp:include page="_menu.jsp"/>

    <h3 style="color:red;">${message}</h3>
</body>
</html>

adminPage.jsp

<%@taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core"%>
<%@page session="true"%>

<html>
<head>
<title>${title}</title>
</head>
<body>
    <jsp:include page="_menu.jsp" />

    <h2>Admin Page</h2>


    <h3>Welcome : ${pageContext.request.userPrincipal.name}</h3>

    <b>This is protected page!</b>
</body>
</html>

loginPage.jsp

<%@taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core"%>

<html>
<head><title>Login</title></head>
<body>
   <jsp:include page="_menu.jsp" />


   <h1>Login</h1>

     <!-- /login?error=true -->
     <c:if test="${param.error == 'true'}">
         <div style="color:red;margin:10px 0px;">

                Login Failed!!!<br />
                Reason :  ${sessionScope["SPRING_SECURITY_LAST_EXCEPTION"].message}

         </div>
    </c:if>

   <h3>Enter user name and password:</h3>

   <form name='f' action="${pageContext.request.contextPath}/j_spring_security_check" method='POST'>
      <table>
         <tr>
            <td>User:</td>
            <td><input type='text' name='username' value=''></td>
         </tr>
         <tr>
            <td>Password:</td>
            <td><input type='password' name='password' /></td>
         </tr>
         <tr>
            <td><input name="submit" type="submit" value="submit" /></td>
         </tr>
      </table>
  </form>
</body>
</html>

logoutSuccessfulPage.jsp

<html>
<head>
<title>Logout</title>
</head>
<body>
    <jsp:include page="_menu.jsp" />

    <h1>Logout Successful!</h1>
</body>
</html>

userInfoPage.jsp

<%@page session="false"%>
<html>
<head>
<title>${title}</title>
</head>
<body>
    <jsp:include page="_menu.jsp" />


    <h1>Message : ${message}</h1>
</body>
</html>

welcomePage.jsp

<%@page session="false"%>
<html>
<head>
<title>${title}</title>
</head>
<body>
  <h1>Message : ${message}</h1>
</body>
</html>

9. Die Konfiguration und das Laufen von der Applikation

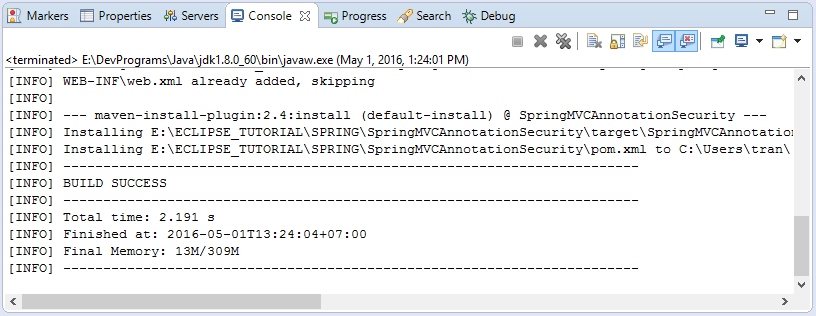

Zum ersten Mal sollen Sie vor dem Laufen der Applikation das ganze Projekt bauen (build)

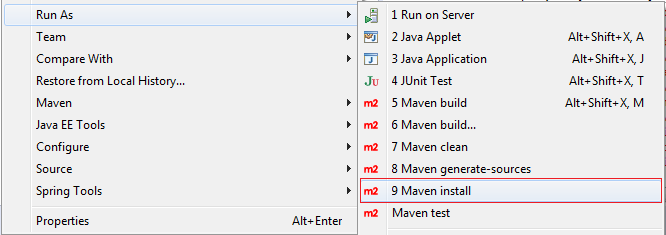

Klicken Sie die Rechtmaustaste auf Projekt und wählen Sie

Run As/Maven install

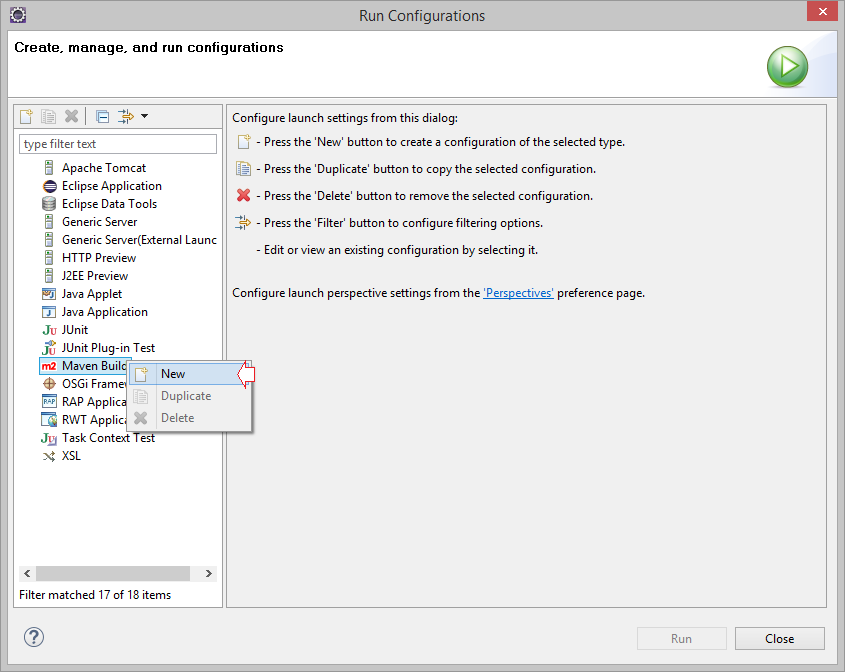

Zur Durchführung der Applikation konfigurieren

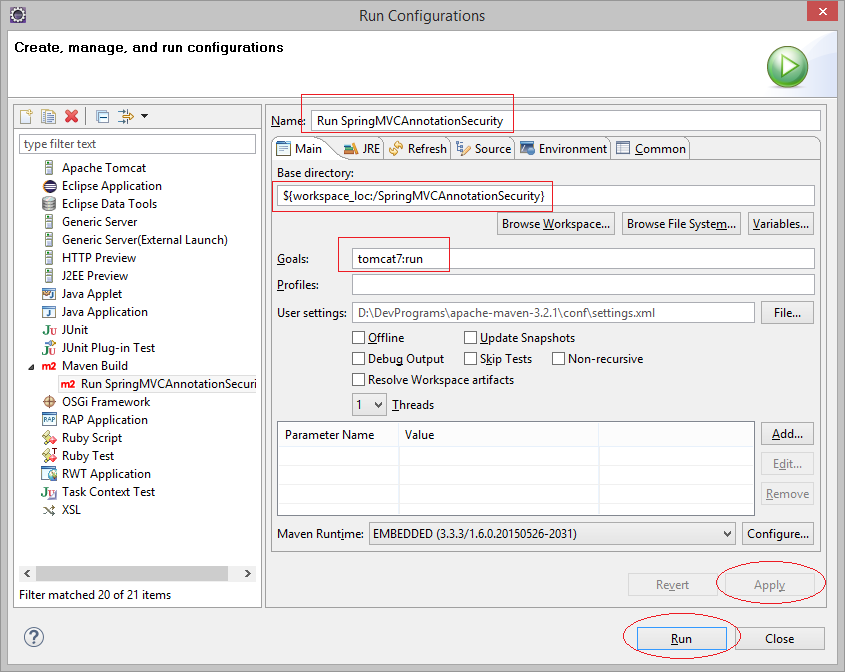

Geben Sie ein

Name: Run SpringMVCSecurity
Base directory: ${workspace_loc:/SpringMVCAnnotationSecurity}

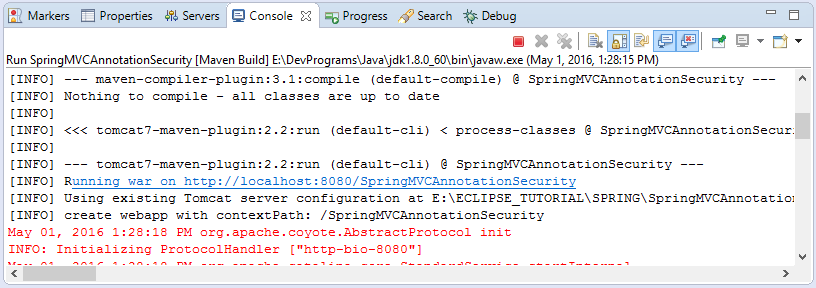

Goals: tomcat7:run

URL laufen:

Typen Sie in den Pfad um die Information des user zu lesen. Falls Sie noch nocht login, wird die Website zur Login Seite weiterleiten

http://localhost:8080/SpringMVCAnnotationSecurity/userInfo

Wenn Sie die Information falsch eingeben und Submit klicken, wird die Website die Login Seite umleiten

Falls das Login erfolgreich ist

Sie können den Pfad versuchen

http://localhost:8080/SpringMVCSecurityXML/admin

Der oben Pfad erlaubt, der User als ADMIN (ROLE_ADMIN) zugreiffen darf:

Falls Sie noch nicht angemeldet haben (login), wird die Website zur Login Seite umleiten. Wenn Sie als ROLE_USER anmelden, erhalten Sie die Benachrichtigung "Zugang verweigert" (Access Denied)

10. Fix Error!

Achtung: Wenn Sie den Fehler erhalten

HTTP Status 404 - /SpringMVCAnnotationSecurity/j_spring_security_check

Stellen Sie sicher, dass Ihre Applikation die Klasse SpringSecurityInitializer hat:
