Die Anleitung zu JavaFX AreaChart und StackedAreaChart

  1. JavaFX AreaChart
  2. Das Beispiel über Areachart
  3. Anpassende BarChart
  4. Die Stil für BarChart anwenden
  5. Die Animation bei der Datenänderung verwalten
  6. AreaChart und das Event

1. JavaFX AreaChart

JavaFX AreaChart wie die anderen Line Diagramm (Line Chart), bezeichnet die Daten als eine Reihe von der Punkte, die durch Linie verbindet werden. Aber der Verbindungslinie zwischen Achse und Straße ist mit Farbe gemalt. Jede Daten series wird mit den unterschiedlichen Farben gemalt.
Beispiel bezeichnet Ihre Monat Einkommen im Jahr von 2014 und 2015
2014
2015
1
400
2000
3
1000
1500
4
1500
1300
5
800
1200
7
500
1400
8
1800
1080
10
1500
2050
12
1300
2005

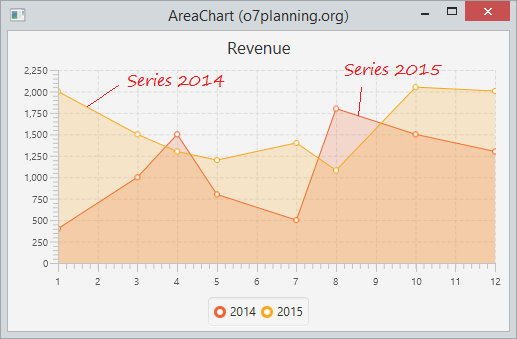

Sie können AreaChart für Darstellung der Grafik mit oben Daten. Sehen Sie Beispiel:
Achse X bezeichnet die Monat im Jahr und Achse Y bezeichnet Ihre Einkommen

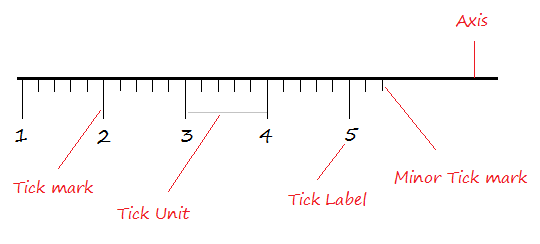

Erstellung X mit 12 Tick mark
// NumberAxis(double lowerBound, double upperBound, double tickUnit) {
NumberAxis xAxis = new NumberAxis(1, 12, 1);

// Or
NumberAxis xAxis = new NumberAxis();

// Using methods:
xAxis.setLowerBound(1);
xAxis.setUpperBound(12);
xAxis.setTickUnit(1);

2. Das Beispiel über Areachart

AreaChartDemo.java
package org.o7planning.javafx.areachart;

import javafx.application.Application;
import javafx.geometry.Side;
import javafx.scene.Scene;
import javafx.scene.chart.AreaChart;
import javafx.scene.chart.NumberAxis;
import javafx.scene.chart.XYChart;
import javafx.stage.Stage;

public class AreaChartDemo extends Application {

    @Override
    public void start(Stage stage) {

        final NumberAxis xAxis = new NumberAxis(1, 12, 1);
        final NumberAxis yAxis = new NumberAxis();
        final AreaChart<Number, Number> areaChart = new AreaChart<Number, Number>(xAxis, yAxis);
        areaChart.setTitle("Revenue");

        areaChart.setLegendSide(Side.LEFT);

        // Series data of 2014
        XYChart.Series<Number, Number> series2014 = new XYChart.Series<Number, Number>();


        series2014.setName("2014");


        series2014.getData().add(new XYChart.Data<Number, Number>(1, 400));
        series2014.getData().add(new XYChart.Data<Number, Number>(3, 1000));
        series2014.getData().add(new XYChart.Data<Number, Number>(4, 1500));
        series2014.getData().add(new XYChart.Data<Number, Number>(5, 800));
        series2014.getData().add(new XYChart.Data<Number, Number>(7, 500));
        series2014.getData().add(new XYChart.Data<Number, Number>(8, 1800));
        series2014.getData().add(new XYChart.Data<Number, Number>(10, 1500));
        series2014.getData().add(new XYChart.Data<Number, Number>(12, 1300));

        // Series data of 2015
        XYChart.Series<Number, Number> series2015 = new XYChart.Series<Number, Number>();
        series2015.setName("2015");
        series2015.getData().add(new XYChart.Data<Number, Number>(1, 2000));
        series2015.getData().add(new XYChart.Data<Number, Number>(3, 1500));
        series2015.getData().add(new XYChart.Data<Number, Number>(4, 1300));
        series2015.getData().add(new XYChart.Data<Number, Number>(5, 1200));
        series2015.getData().add(new XYChart.Data<Number, Number>(7, 1400));
        series2015.getData().add(new XYChart.Data<Number, Number>(8, 1080));
        series2015.getData().add(new XYChart.Data<Number, Number>(10, 2050));
        series2015.getData().add(new XYChart.Data<Number, Number>(12, 2005));

        stage.setTitle("AreaChart (o7planning.org)");
        Scene scene = new Scene(areaChart, 400, 300);
        areaChart.getData().addAll(series2014, series2015);
        stage.setScene(scene);
        stage.show();
    }

    public static void main(String[] args) {
        launch(args);
    }

}

3. Anpassende BarChart

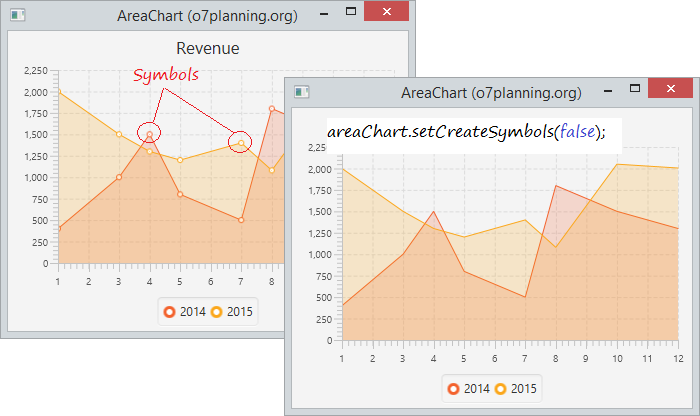

Benutzen Sie die Methode setCreateSymbols(false) für die Versteckung des Symbols

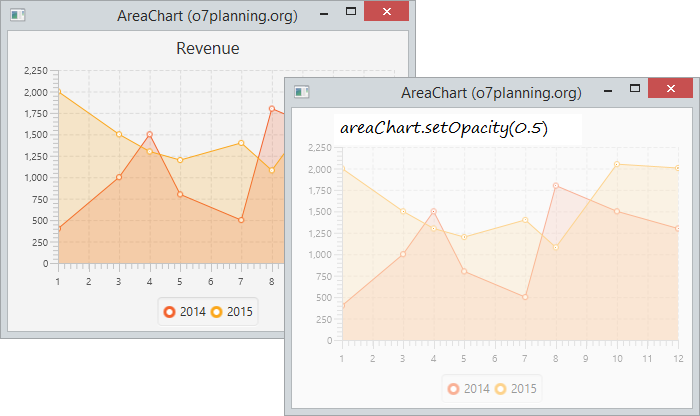

die Opazität (Opacity) der Grafik mit setOpacity(value) setzen, value parameter liegt von 0 bis 1

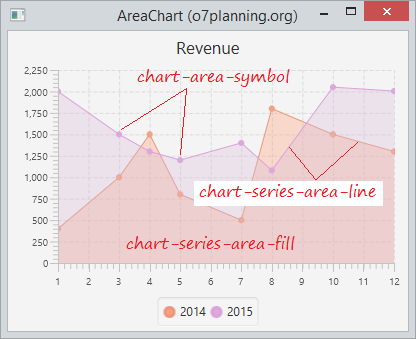

4. Die Stil für BarChart anwenden

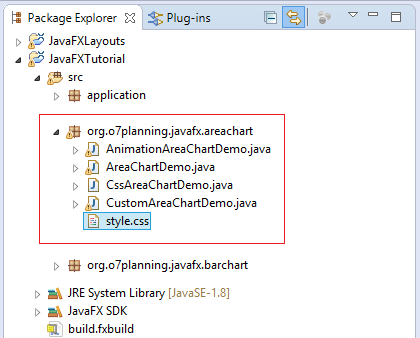

Erstellung eines file style.css in einer Package mit Ihrem Class
style.css
.default-color0.chart-area-symbol { -fx-background-color: #e9967a, #ffa07a; }
.default-color1.chart-area-symbol { -fx-background-color: #dda0dd, #d8bfd855; }

.default-color0.chart-series-area-line { -fx-stroke: #e9967a; }
.default-color1.chart-series-area-line { -fx-stroke: #dda0dd; }

.default-color0.chart-series-area-fill { -fx-fill: #ffa07a55; }
.default-color1.chart-series-area-fill { -fx-fill: #d8bfd855; }
Benutzen Sie die Methode scene.getStylesheets().add(cssSource) um die file stylesheets in Scene zusätzen.
// Add stylesheet to the Scene.
scene.getStylesheets().add("org/o7planning/javafx/areachart/style.css");
Beispiel
CssAreaChartDemo.java
package org.o7planning.javafx.areachart;

import javafx.application.Application;
import javafx.scene.Scene;
import javafx.scene.chart.AreaChart;
import javafx.scene.chart.NumberAxis;
import javafx.scene.chart.XYChart;
import javafx.stage.Stage;

public class CssAreaChartDemo extends Application {

    @Override
    public void start(Stage stage) {

        final NumberAxis xAxis = new NumberAxis(1, 12, 1);
        final NumberAxis yAxis = new NumberAxis();
        final AreaChart<Number, Number> areaChart = new AreaChart<Number, Number>(xAxis, yAxis);
        areaChart.setTitle("Revenue");


        // Series data of 2014
        XYChart.Series<Number, Number> series2014 = new XYChart.Series<Number, Number>();


        series2014.setName("2014");


        series2014.getData().add(new XYChart.Data<Number, Number>(1, 400));
        series2014.getData().add(new XYChart.Data<Number, Number>(3, 1000));
        series2014.getData().add(new XYChart.Data<Number, Number>(4, 1500));
        series2014.getData().add(new XYChart.Data<Number, Number>(5, 800));
        series2014.getData().add(new XYChart.Data<Number, Number>(7, 500));
        series2014.getData().add(new XYChart.Data<Number, Number>(8, 1800));
        series2014.getData().add(new XYChart.Data<Number, Number>(10, 1500));
        series2014.getData().add(new XYChart.Data<Number, Number>(12, 1300));

        // Series data of 2015
        XYChart.Series<Number, Number> series2015 = new XYChart.Series<Number, Number>();
        series2015.setName("2015");
        series2015.getData().add(new XYChart.Data<Number, Number>(1, 2000));
        series2015.getData().add(new XYChart.Data<Number, Number>(3, 1500));
        series2015.getData().add(new XYChart.Data<Number, Number>(4, 1300));
        series2015.getData().add(new XYChart.Data<Number, Number>(5, 1200));
        series2015.getData().add(new XYChart.Data<Number, Number>(7, 1400));
        series2015.getData().add(new XYChart.Data<Number, Number>(8, 1080));
        series2015.getData().add(new XYChart.Data<Number, Number>(10, 2050));
        series2015.getData().add(new XYChart.Data<Number, Number>(12, 2005));


        stage.setTitle("AreaChart (o7planning.org)");
        Scene scene = new Scene(areaChart, 400, 300);

        // Add stylesheet to the Scene. .
        scene.getStylesheets().add("org/o7planning/javafx/areachart/style.css");


        areaChart.getData().addAll(series2014, series2015);
        stage.setScene(scene);
        stage.show();
    }

    public static void main(String[] args) {
        launch(args);
    }

}

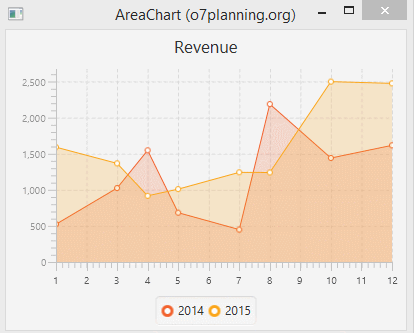

5. Die Animation bei der Datenänderung verwalten

Wenn die Daten ändert, können Sie für die Wiederbezeichnung der Grafik updaten. JavaFX ermöglicht Ihnen die Effekt zu erstellen, um die Grafik mit neue Daten wieder zu bezeichnen
// Changing random data after every 1 second.
Timeline timeline = new Timeline();
timeline.getKeyFrames().add(new KeyFrame(Duration.millis(1000), new EventHandler<ActionEvent>() {
   @Override
   public void handle(ActionEvent actionEvent) {
       for (XYChart.Series<Number, Number> series : areaChart.getData()) {
           for (XYChart.Data<Number, Number> data : series.getData()) {
               Number yValue = data.getYValue();
               Number randomValue = yValue.doubleValue() * (0.5 + Math.random());
               data.setYValue(randomValue);
           }
       }
   }
}));
// Repeat indefinitely until stop() method is called.
timeline.setCycleCount(Animation.INDEFINITE);
timeline.setAutoReverse(true);
timeline.play();
Beispiel
AnimationAreaChartDemo.java
package org.o7planning.javafx.areachart;

import javafx.animation.Animation;
import javafx.animation.KeyFrame;
import javafx.animation.Timeline;
import javafx.application.Application;
import javafx.event.ActionEvent;
import javafx.event.EventHandler;
import javafx.scene.Scene;
import javafx.scene.chart.AreaChart;
import javafx.scene.chart.NumberAxis;
import javafx.scene.chart.XYChart;
import javafx.stage.Stage;
import javafx.util.Duration;

public class AnimationAreaChartDemo extends Application {

   @Override
   public void start(Stage stage) {

       final NumberAxis xAxis = new NumberAxis(1, 12, 1);
       final NumberAxis yAxis = new NumberAxis();
       final AreaChart<Number, Number> areaChart = new AreaChart<Number, Number>(xAxis, yAxis);
       areaChart.setTitle("Revenue");

       // Series data of 2014
       XYChart.Series<Number, Number> series2014 = new XYChart.Series<Number, Number>();

       series2014.setName("2014");

       series2014.getData().add(new XYChart.Data<Number, Number>(1, 400));
       series2014.getData().add(new XYChart.Data<Number, Number>(3, 1000));
       series2014.getData().add(new XYChart.Data<Number, Number>(4, 1500));
       series2014.getData().add(new XYChart.Data<Number, Number>(5, 800));
       series2014.getData().add(new XYChart.Data<Number, Number>(7, 500));
       series2014.getData().add(new XYChart.Data<Number, Number>(8, 1800));
       series2014.getData().add(new XYChart.Data<Number, Number>(10, 1500));
       series2014.getData().add(new XYChart.Data<Number, Number>(12, 1300));

       // Series data of 2015
       XYChart.Series<Number, Number> series2015 = new XYChart.Series<Number, Number>();
       series2015.setName("2015");
       series2015.getData().add(new XYChart.Data<Number, Number>(1, 2000));
       series2015.getData().add(new XYChart.Data<Number, Number>(3, 1500));
       series2015.getData().add(new XYChart.Data<Number, Number>(4, 1300));
       series2015.getData().add(new XYChart.Data<Number, Number>(5, 1200));
       series2015.getData().add(new XYChart.Data<Number, Number>(7, 1400));
       series2015.getData().add(new XYChart.Data<Number, Number>(8, 1080));
       series2015.getData().add(new XYChart.Data<Number, Number>(10, 2050));
       series2015.getData().add(new XYChart.Data<Number, Number>(12, 2005));

       // Changing random data after every 1 second.
       Timeline timeline = new Timeline();
       timeline.getKeyFrames().add(new KeyFrame(Duration.millis(1000), new EventHandler<ActionEvent>() {
           @Override
           public void handle(ActionEvent actionEvent) {
               for (XYChart.Series<Number, Number> series : areaChart.getData()) {
                   for (XYChart.Data<Number, Number> data : series.getData()) {
                       Number yValue = data.getYValue();
                       Number randomValue = yValue.doubleValue() * (0.5 + Math.random());
                       data.setYValue(randomValue);
                   }
               }
           }
       }));
       // Repeat indefinitely until stop() method is called.
       timeline.setCycleCount(Animation.INDEFINITE);
       timeline.setAutoReverse(true);
       timeline.play();

       stage.setTitle("AreaChart (o7planning.org)");
       Scene scene = new Scene(areaChart, 400, 300);
       areaChart.getData().addAll(series2014, series2015);
       stage.setScene(scene);
       stage.show();
   }

   public static void main(String[] args) {
       launch(args);
   }

}

6. AreaChart und das Event

  • TODO
