Die Anleitung zu Android StackView

Was ist Android StackView?
Zum Beispiel mit Android StackView
Anhang: stack_item.xml entwerfen
Anhang: main_activity.xml entwerfen

1. Was ist Android StackView?

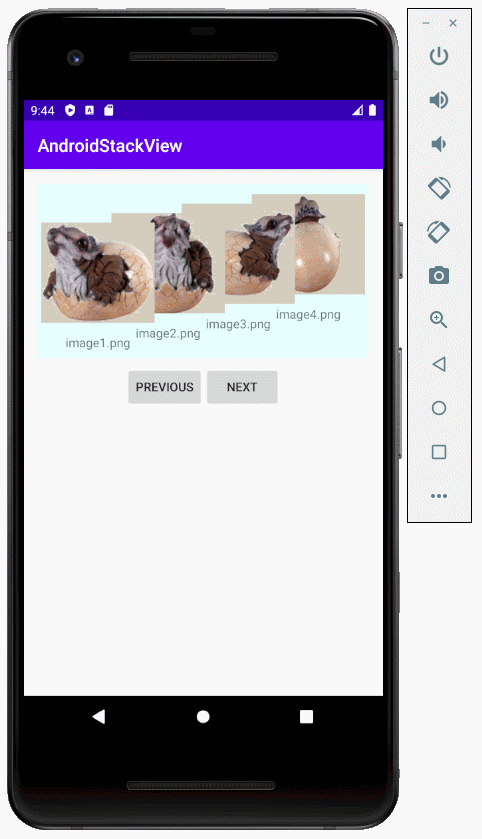

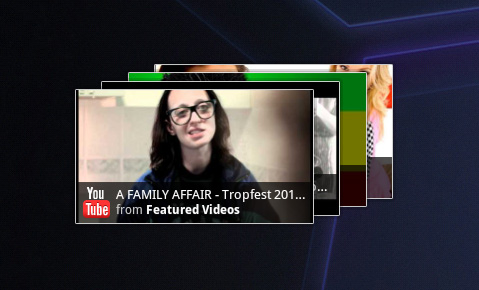

Das folgende Bild bezeichnet StackView:

Ein Beispiel über StackView können Sie im Dokument sehen

TODO - More info

2. Zum Beispiel mit Android StackView

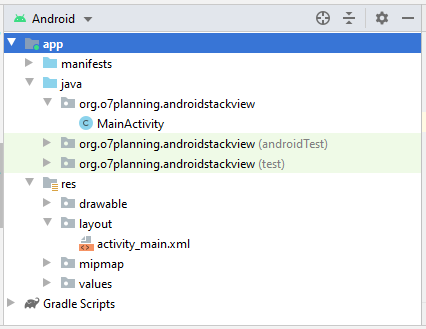

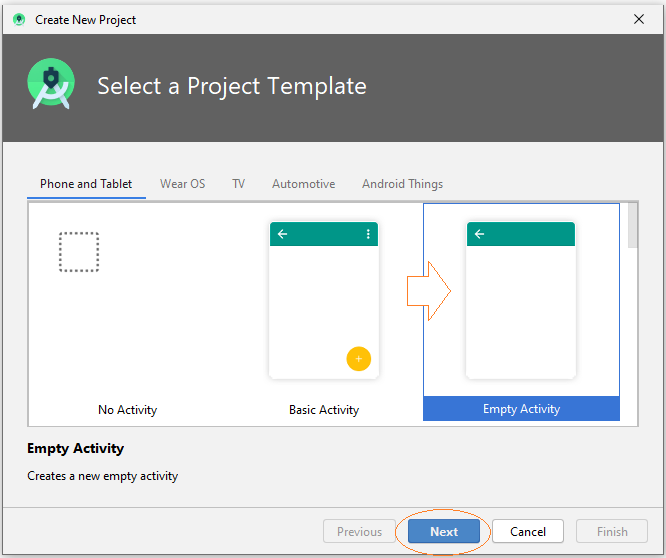

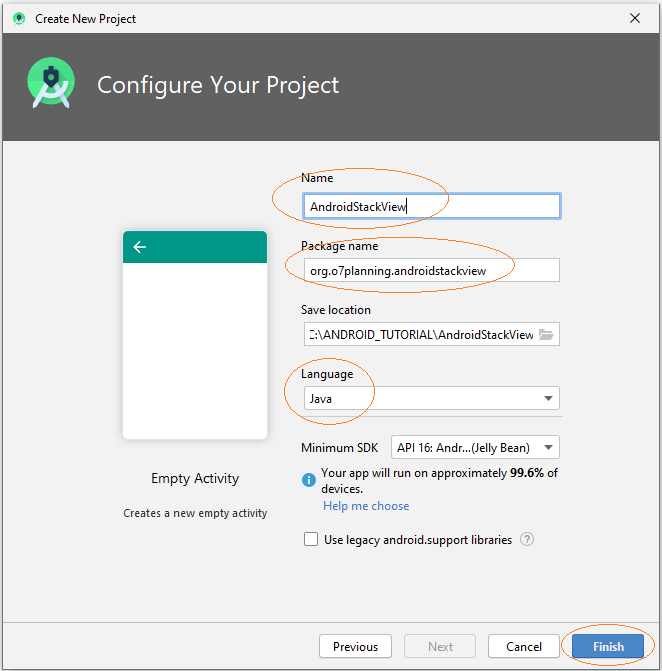

Erstellen Sie ein Projekt mit dem Name von AndroidStackView:

Name: AndroidStackView
Package name: org.o7planning.androidstackview

Sie brauchen einige Fotos für die Teilnahme an dem Beispiel:

https://s3.o7planning.com/static/demo-data/triceratops.zip

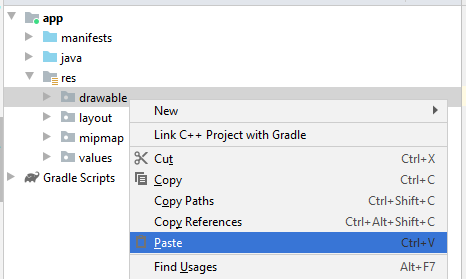

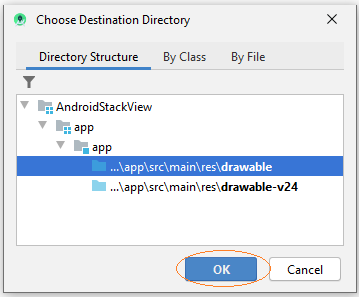

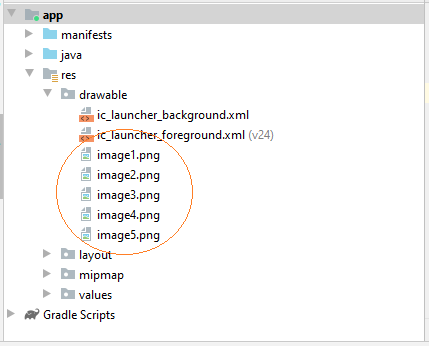

Kopieren Sie die Foto-File in dem Ordnen drawable des Projekt.

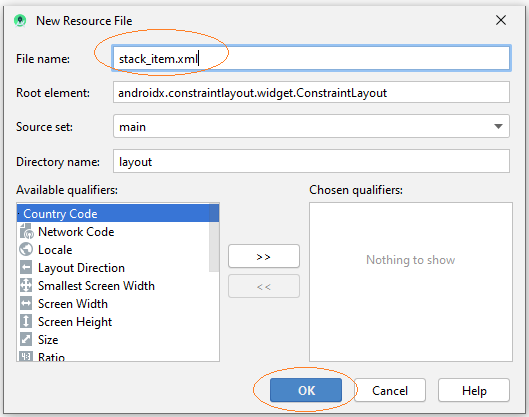

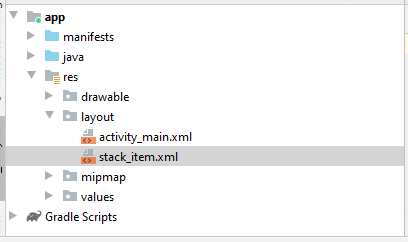

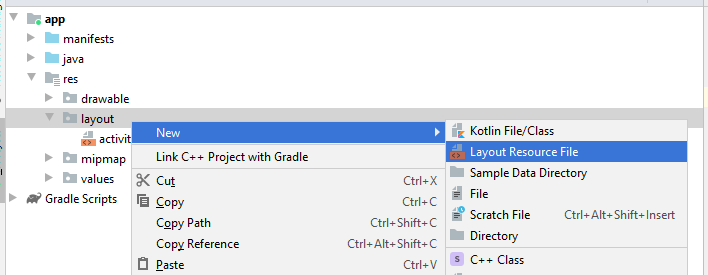

Die File layout zur Aufbau der Layout für StackItem hinfügen:

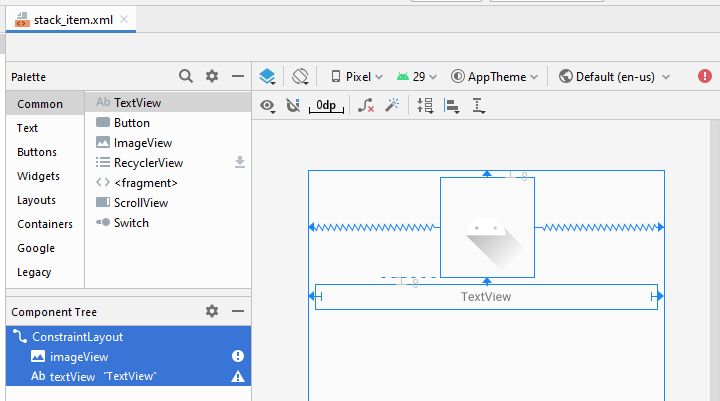

Machen Sie die Interface für StackItem:

stack_item.xml

<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent">

    <ImageView
        android:id="@+id/imageView"
        android:layout_width="wrap_content"
        android:layout_height="115sp"
        android:layout_marginTop="8dp"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintTop_toTopOf="parent"
        app:srcCompat="@drawable/ic_launcher_foreground"
        tools:ignore="VectorDrawableCompat" />

    <TextView
        android:id="@+id/textView"
        android:layout_width="0dp"
        android:layout_height="29dp"
        android:layout_marginStart="8dp"
        android:layout_marginLeft="8dp"
        android:layout_marginTop="8dp"
        android:layout_marginEnd="8dp"
        android:layout_marginRight="8dp"
        android:gravity="center"
        android:text="TextView"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintTop_toBottomOf="@+id/imageView" />
</androidx.constraintlayout.widget.ConstraintLayout>

Die Interface der Applikation:

activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".MainActivity">

    <StackView
        android:id="@+id/stackView"
        android:layout_width="0dp"
        android:layout_height="201dp"
        android:layout_marginStart="16dp"
        android:layout_marginLeft="16dp"
        android:layout_marginTop="16dp"
        android:layout_marginEnd="16dp"
        android:layout_marginRight="16dp"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintTop_toTopOf="parent" />

    <LinearLayout
        android:layout_width="0dp"
        android:layout_height="wrap_content"
        android:layout_marginStart="16dp"
        android:layout_marginLeft="16dp"
        android:layout_marginTop="8dp"
        android:layout_marginEnd="16dp"
        android:layout_marginRight="16dp"
        android:orientation="horizontal"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintTop_toBottomOf="@+id/stackView">

        <Space
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_weight="1" />

        <Button
            android:id="@+id/button_previous"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_weight="0"
            android:text="Previous" />

        <Button
            android:id="@+id/button_next"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_weight="0"
            android:text="Next" />

        <Space
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_weight="1" />
    </LinearLayout>

</androidx.constraintlayout.widget.ConstraintLayout>

StackItem.java

package org.o7planning.androidstackview;

public class StackItem {

    private String itemText;

    // "image1","image2",..
    private String imageName;

    public StackItem(String text, String imageName) {
        this.imageName = imageName;
        this.itemText = text;
    }

    public String getImageName() {
        return imageName;
    }


    public String getItemText() {
        return itemText;
    }

}

StackAdapter.java

package org.o7planning.androidstackview;

import android.content.Context;
import android.graphics.Color;
import android.util.Log;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.ArrayAdapter;
import android.widget.ImageView;
import android.widget.TextView;

import java.util.List;

public class StackAdapter extends ArrayAdapter<StackItem> {

    private List<StackItem> items;
    private Context context;

    public StackAdapter(Context context, int textViewResourceId,
                        List<StackItem> objects) {
        super(context, textViewResourceId, objects);
        this.items = objects;
        this.context = context;
    }

    public View getView(int position, View convertView, ViewGroup parent) {
        View itemView = convertView;
        if (itemView == null) {
            LayoutInflater layoutInflater = (LayoutInflater) context
                    .getSystemService(Context.LAYOUT_INFLATER_SERVICE);
            itemView = layoutInflater.inflate(R.layout.stack_item, null);
        }
        StackItem stackItem = items.get(position);
        if(stackItem== null)  {
            Log.i("MyLog", "stackItem at " + position + " is null!!!");
            return itemView;
        }
        // TextView defined in the stack_item.xml
        TextView textView = (TextView) itemView.findViewById(R.id.textView);

        // ImageView defined in the stack_item.xml
        ImageView imageView = (ImageView) itemView.findViewById(R.id.imageView);

        textView.setText(stackItem.getItemText());

        // "image1", "image2",..
        String imageName= stackItem.getImageName();

        int resId= this.getDrawableResIdByName(imageName);

        imageView.setImageResource(resId);
        imageView.setBackgroundColor(Color.rgb(211,204,188));

        return itemView;
    }


    // Find Image ID corresponding to the name of the image (in the drawable folder).
    public int getDrawableResIdByName(String resName)  {
        String pkgName = context.getPackageName();
        // Return 0 if not found.
        int resID = context.getResources().getIdentifier(resName, "drawable", pkgName);
        Log.i("MyLog", "Res Name: " + resName + "==> Res ID = " + resID);
        return resID;
    }

}

MainActivity.java

package org.o7planning.androidstackview;

import androidx.appcompat.app.AppCompatActivity;
import android.os.Bundle;
import android.graphics.Color;
import android.view.View;
import android.widget.Button;
import android.widget.StackView;

import java.util.ArrayList;
import java.util.List;

public class MainActivity extends AppCompatActivity {

    private StackView stackView;
    private Button buttonPrevious;
    private Button buttonNext;

    private final String[] IMAGE_NAMES= {"image1","image2", "image3", "image4","image5"};

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        this.stackView = (StackView) findViewById(R.id.stackView);
        this.buttonNext =(Button) findViewById(R.id.button_next);
        this.buttonPrevious= (Button) findViewById(R.id.button_previous);

        List<StackItem> items = new ArrayList<StackItem>();

        for(String imageName: IMAGE_NAMES) {
            items.add(new StackItem(imageName+".png", imageName));
        }

        StackAdapter adapt = new StackAdapter(this, R.layout.stack_item, items);
        stackView.setAdapter(adapt);
        stackView.setHorizontalScrollBarEnabled(true);
        stackView.setBackgroundColor(Color.rgb(230, 255, 255));

        buttonNext.setOnClickListener(new Button.OnClickListener() {

            @Override
            public void onClick(View v) {
                stackView.showNext();
            }
        });

        buttonPrevious.setOnClickListener(new Button.OnClickListener(){

            @Override
            public void onClick(View v) {
                stackView.showPrevious();
            }
        });
    }


}

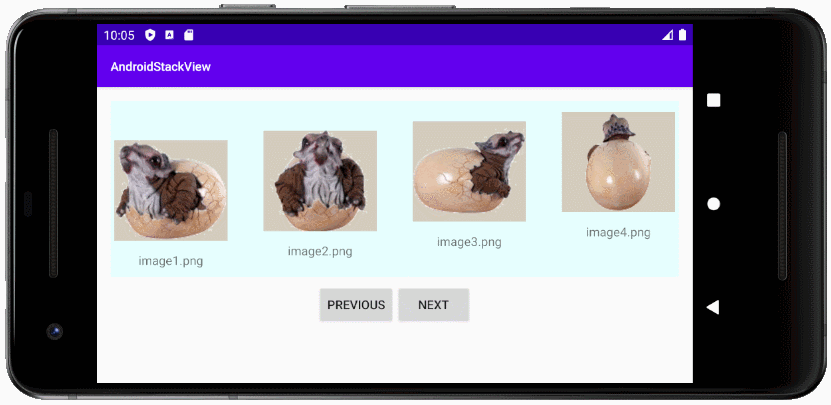

Die Applikation laufen

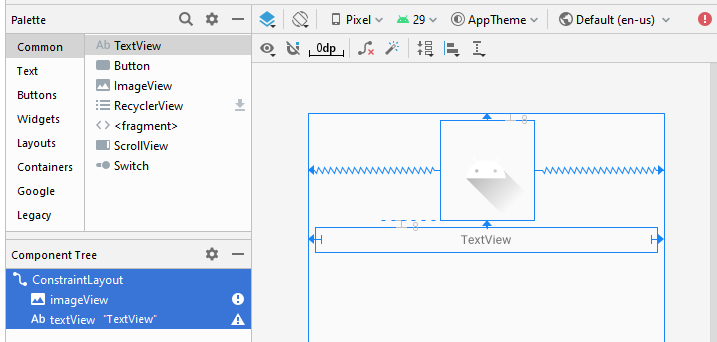

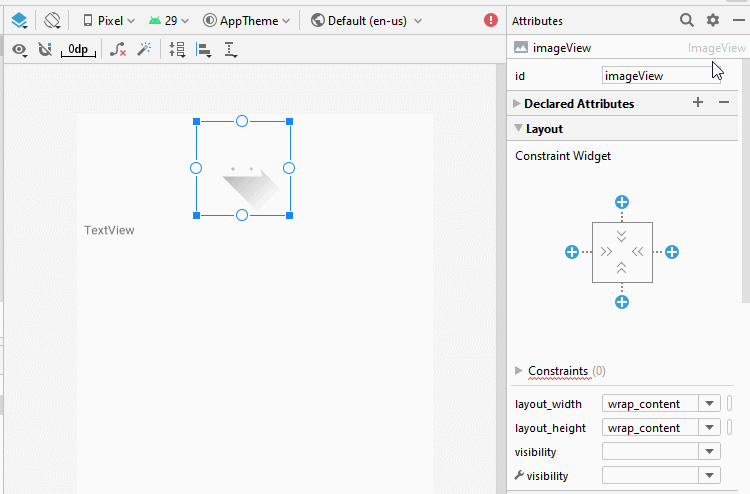

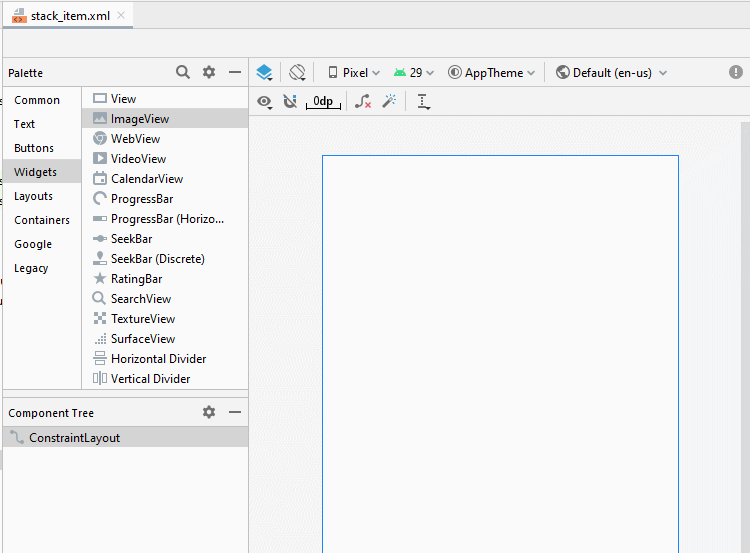

3. Anhang: stack_item.xml entwerfen

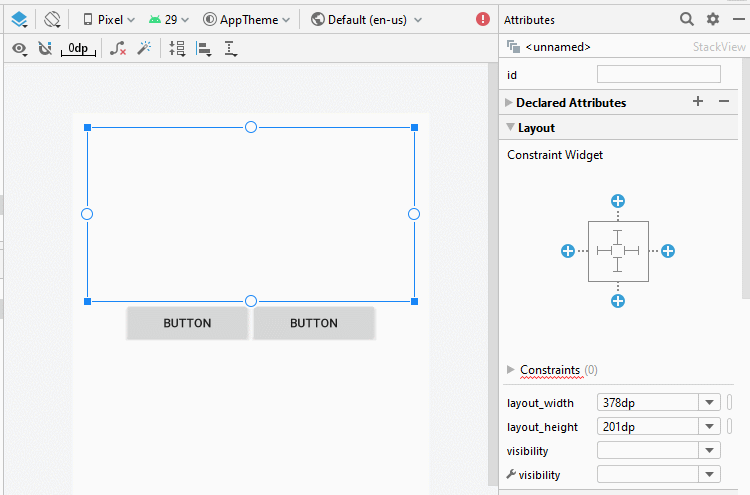

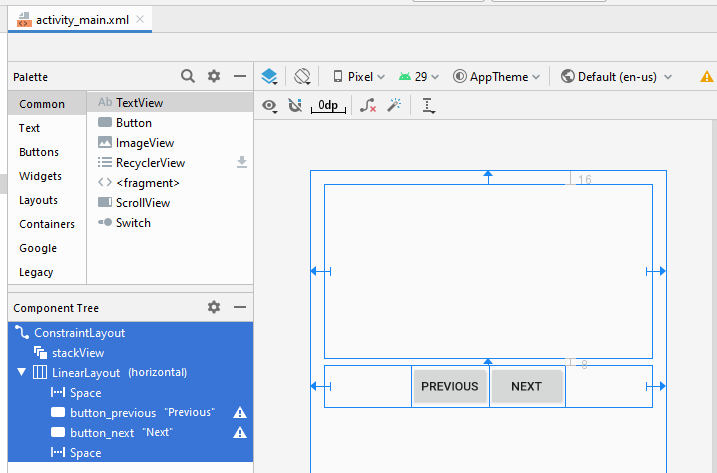

4. Anhang: main_activity.xml entwerfen

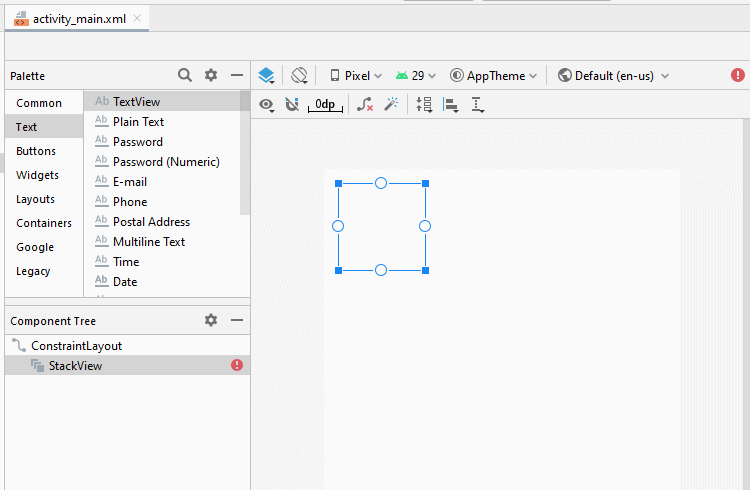

IIch weiß nicht warum, aber StackView ist nicht auf der Palette des Entwurfsfensters verfügbar (Android Studio 3.6.x), so dass Sie möglicherweise den folgenden XML-Code zu main_activity.xml hinzufügen müssen, um StackView auf der Interface zu erhalten.

<StackView
        android:layout_width="100dp"
        android:layout_height="100dp"
        tools:layout_editor_absoluteX="16dp"
        tools:layout_editor_absoluteY="16dp" />

Legen Sie ID, Text für die Komponenten in die Interface fest.
